| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_077T01_9000006286_46952cztM0_level2.fits | modeM0/AS1A13_077T01_9000006286_46952cztM0_level2_quad_clean.evt |
| Size (bytes) | 603,377,280 | 95,221,440 |
| Size | 575.4 MB | 90.8 MB |
| Events in quadrant A | 6,146,047 | 669,867 |
| Events in quadrant B | 8,612,912 | 531,499 |
| Events in quadrant C | 2,814,412 | 665,849 |
| Events in quadrant D | 4,299,328 | 598,747 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22801 | 1 |
| B | 0 | 29703 | 1 |
| C | 0 | 12575 | 1 |
| D | 0 | 16645 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5969 | 255 | 4.272072% |
| B | 5969 | 1906 | 31.931647% |
| C | 5970 | 78 | 1.306533% |
| D | 5970 | 327 | 5.477387% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7119 | 5970 | 28 | 28 | 0.39% | 0.47% |  |
| B | 7118 | 5968 | 1694 | 1694 | 23.80% | 28.38% |  |
| C | 7120 | 5970 | 19 | 19 | 0.27% | 0.32% |  |
| D | 7120 | 5971 | 255 | 255 | 3.58% | 4.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3398015 | 23650.76 | 692 | 678 | 143.6 |
| A | 0 | 243 | 18356 | 123.07 | 692 | 678 | 143.6 |
| A | 15 | 235 | 18333 | 122.91 | 692 | 678 | 143.6 |
| B | 3 | 112 | 5830699 | 47042.3 | 629 | 610 | 123.9 |
| B | 5 | 32 | 59332 | 473.82 | 629 | 610 | 123.9 |
| B | 0 | 190 | 57795 | 461.42 | 629 | 610 | 123.9 |
| C | 14 | 254 | 108777 | 667.06 | 681 | 685 | 162.0 |
| C | 12 | 2 | 14719 | 86.61 | 681 | 685 | 162.0 |
| C | 1 | 3 | 11967 | 69.62 | 681 | 685 | 162.0 |
| D | 1 | 52 | 565983 | 3287.14 | 677 | 655 | 172.0 |
| D | 13 | 249 | 425415 | 2469.8 | 677 | 655 | 172.0 |
| D | 12 | 233 | 315807 | 1832.47 | 677 | 655 | 172.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

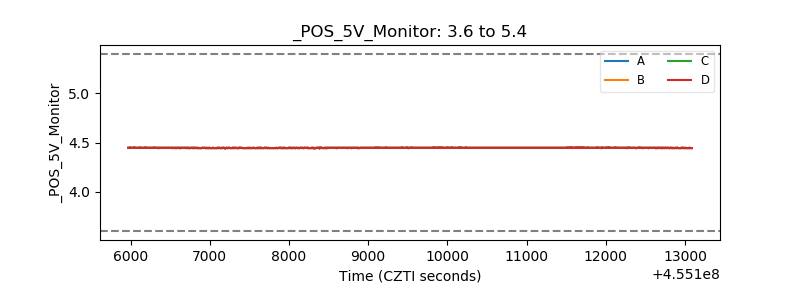

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
