| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_077T01_9000006286_46954cztM0_level2.fits | modeM0/AS1A13_077T01_9000006286_46954cztM0_level2_quad_clean.evt |
| Size (bytes) | 597,170,880 | 92,390,400 |
| Size | 569.5 MB | 88.1 MB |
| Events in quadrant A | 6,162,178 | 653,197 |
| Events in quadrant B | 8,967,311 | 487,827 |
| Events in quadrant C | 2,794,724 | 649,424 |
| Events in quadrant D | 3,720,894 | 591,970 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22432 | 3 |
| B | 0 | 30751 | 1 |
| C | 0 | 12620 | 1 |
| D | 0 | 15160 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5941 | 240 | 4.039724% |
| B | 5942 | 2107 | 35.459441% |
| C | 5942 | 101 | 1.699764% |
| D | 5942 | 220 | 3.702457% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7061 | 5942 | 24 | 24 | 0.34% | 0.40% |  |
| B | 7062 | 5942 | 1855 | 1855 | 26.27% | 31.22% |  |
| C | 7062 | 5943 | 33 | 33 | 0.47% | 0.56% |  |
| D | 7062 | 5942 | 172 | 172 | 2.44% | 2.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3464912 | 24507.95 | 678 | 663 | 141.4 |
| A | 9 | 191 | 28361 | 195.95 | 678 | 663 | 141.4 |
| A | 0 | 243 | 15304 | 103.58 | 678 | 663 | 141.4 |
| B | 3 | 112 | 6082568 | 49852.61 | 615 | 599 | 122.0 |
| B | 4 | 171 | 210891 | 1723.72 | 615 | 599 | 122.0 |
| B | 5 | 32 | 77677 | 631.79 | 615 | 599 | 122.0 |
| C | 1 | 3 | 137430 | 869.81 | 665 | 670 | 157.2 |
| C | 14 | 254 | 36262 | 226.37 | 665 | 670 | 157.2 |
| C | 3 | 233 | 10734 | 64.01 | 665 | 670 | 157.2 |
| D | 1 | 47 | 322516 | 1910.05 | 667 | 647 | 168.5 |
| D | 1 | 52 | 306591 | 1815.55 | 667 | 647 | 168.5 |
| D | 11 | 224 | 153953 | 909.76 | 667 | 647 | 168.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

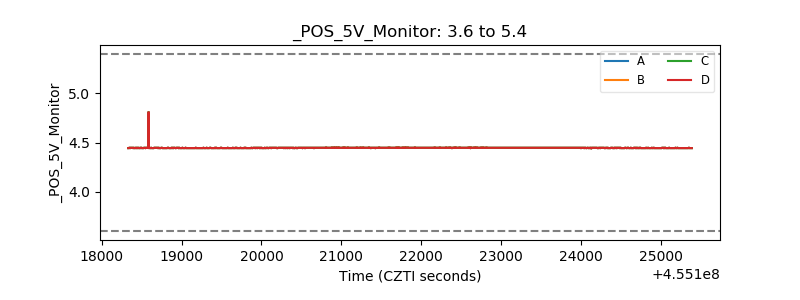

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
