| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_070T06_9000006288_46961cztM0_level2.fits | modeM0/AS1A13_070T06_9000006288_46961cztM0_level2_quad_clean.evt |
| Size (bytes) | 573,192,000 | 128,191,680 |
| Size | 546.6 MB | 122.3 MB |
| Events in quadrant A | 7,265,845 | 845,505 |
| Events in quadrant B | 5,053,221 | 856,689 |
| Events in quadrant C | 4,117,074 | 851,873 |
| Events in quadrant D | 4,163,489 | 772,765 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26657 | 1 |
| B | 0 | 20644 | 6 |
| C | 0 | 17889 | 1 |
| D | 0 | 18476 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7975 | 192 | 2.407524% |
| B | 7973 | 289 | 3.624733% |
| C | 7976 | 75 | 0.940321% |
| D | 7976 | 168 | 2.106319% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8105 | 7976 | 7 | 7 | 0.09% | 0.09% |  |
| B | 8105 | 7975 | 41 | 41 | 0.51% | 0.51% |  |
| C | 8106 | 7977 | 64 | 64 | 0.79% | 0.80% |  |
| D | 8106 | 7977 | 119 | 119 | 1.47% | 1.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3713244 | 19830.74 | 894 | 871 | 187.2 |
| A | 14 | 248 | 60680 | 319.49 | 894 | 871 | 187.2 |
| A | 3 | 7 | 11521 | 56.89 | 894 | 871 | 187.2 |
| B | 3 | 112 | 1174571 | 6640.83 | 888 | 856 | 176.7 |
| B | 5 | 255 | 200849 | 1131.55 | 888 | 856 | 176.7 |
| B | 5 | 32 | 45493 | 252.55 | 888 | 856 | 176.7 |
| C | 14 | 254 | 450105 | 2124.32 | 892 | 894 | 211.5 |
| C | 15 | 208 | 164374 | 773.1 | 892 | 894 | 211.5 |
| C | 12 | 2 | 10316 | 44.56 | 892 | 894 | 211.5 |
| D | 13 | 249 | 622530 | 2824.54 | 881 | 852 | 220.1 |
| D | 1 | 52 | 44765 | 199.51 | 881 | 852 | 220.1 |
| D | 1 | 47 | 42707 | 190.16 | 881 | 852 | 220.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

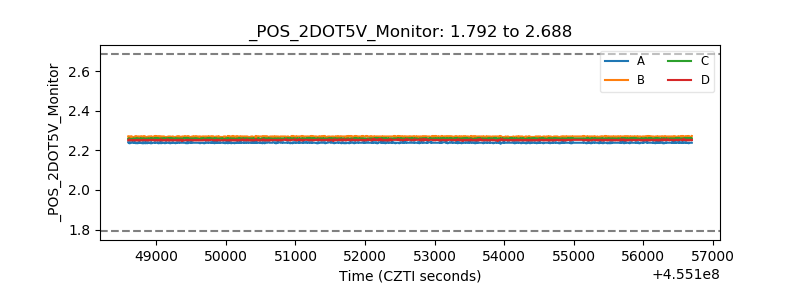

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
