| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T07_9000006290_46976cztM0_level2.fits | modeM0/AS1A13_071T07_9000006290_46976cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,021,248,000 | 202,057,920 |
| Size | 973.9 MB | 192.7 MB |
| Events in quadrant A | 12,653,455 | 1,340,599 |
| Events in quadrant B | 10,010,782 | 1,349,148 |
| Events in quadrant C | 5,858,131 | 1,322,003 |
| Events in quadrant D | 8,272,619 | 1,203,367 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 268 | 0 |
| B | 0 | 268 | 0 |
| C | 0 | 268 | 0 |
| D | 0 | 268 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46337 | 2 |
| B | 0 | 38770 | 2 |
| C | 0 | 27442 | 2 |
| D | 0 | 33950 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13053 | 456 | 3.493450% |
| B | 13054 | 693 | 5.308718% |
| C | 13054 | 112 | 0.857975% |
| D | 13054 | 479 | 3.669373% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13863 | 13056 | 104 | 104 | 0.75% | 0.80% |  |
| B | 13864 | 13057 | 169 | 169 | 1.22% | 1.29% |  |
| C | 13864 | 13057 | 41 | 41 | 0.30% | 0.31% |  |
| D | 13864 | 13057 | 359 | 359 | 2.59% | 2.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 6623083 | 22793.77 | 1412 | 1381 | 290.5 |
| A | 14 | 248 | 423952 | 1454.61 | 1412 | 1381 | 290.5 |
| A | 9 | 191 | 86889 | 294.34 | 1412 | 1381 | 290.5 |
| B | 3 | 112 | 3700393 | 13469.96 | 1402 | 1356 | 274.6 |
| B | 4 | 171 | 216726 | 784.27 | 1402 | 1356 | 274.6 |
| B | 5 | 172 | 153240 | 553.08 | 1402 | 1356 | 274.6 |
| C | 14 | 254 | 234666 | 716.48 | 1391 | 1396 | 325.6 |
| C | 15 | 208 | 175862 | 535.86 | 1391 | 1396 | 325.6 |
| C | 12 | 250 | 15400 | 43.01 | 1391 | 1396 | 325.6 |
| D | 1 | 52 | 1414412 | 4105.52 | 1374 | 1330 | 344.2 |
| D | 13 | 249 | 1031973 | 2994.39 | 1374 | 1330 | 344.2 |
| D | 2 | 249 | 104046 | 298.43 | 1374 | 1330 | 344.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

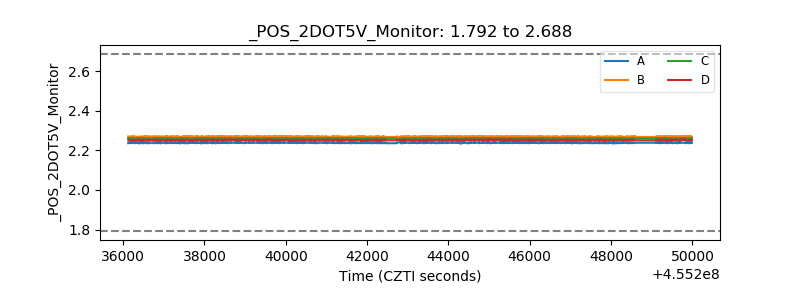

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
