| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T08_9000006292_46984cztM0_level2.fits | modeM0/AS1A13_071T08_9000006292_46984cztM0_level2_quad_clean.evt |
| Size (bytes) | 768,957,120 | 94,063,680 |
| Size | 733.3 MB | 89.7 MB |
| Events in quadrant A | 6,508,758 | 700,258 |
| Events in quadrant B | 12,065,341 | 395,967 |
| Events in quadrant C | 3,563,175 | 695,189 |
| Events in quadrant D | 5,821,668 | 600,896 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23770 | 1 |
| B | 0 | 40414 | 4 |
| C | 0 | 15451 | 1 |
| D | 0 | 21864 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6533 | 262 | 4.010409% |
| B | 6532 | 3628 | 55.541947% |
| C | 6532 | 235 | 3.597673% |
| D | 6533 | 636 | 9.735191% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7528 | 6534 | 25 | 25 | 0.33% | 0.38% |  |
| B | 7527 | 6533 | 2901 | 2901 | 38.54% | 44.41% |  |
| C | 7527 | 6533 | 207 | 207 | 2.75% | 3.17% |  |
| D | 7528 | 6534 | 575 | 575 | 7.64% | 8.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3559715 | 23861.81 | 724 | 709 | 149.2 |
| A | 0 | 243 | 51364 | 339.62 | 724 | 709 | 149.2 |
| A | 9 | 191 | 42434 | 279.75 | 724 | 709 | 149.2 |
| B | 3 | 112 | 9397016 | 79204.44 | 605 | 586 | 118.6 |
| B | 4 | 171 | 103895 | 870.81 | 605 | 586 | 118.6 |
| B | 7 | 219 | 51994 | 433.33 | 605 | 586 | 118.6 |
| C | 12 | 2 | 579179 | 3495.92 | 706 | 709 | 165.5 |
| C | 14 | 254 | 199599 | 1201.97 | 706 | 709 | 165.5 |
| C | 1 | 3 | 15629 | 90.17 | 706 | 709 | 165.5 |
| D | 13 | 249 | 1706910 | 10066.36 | 684 | 662 | 169.5 |
| D | 1 | 52 | 824664 | 4861.37 | 684 | 662 | 169.5 |
| D | 1 | 47 | 318605 | 1875.77 | 684 | 662 | 169.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

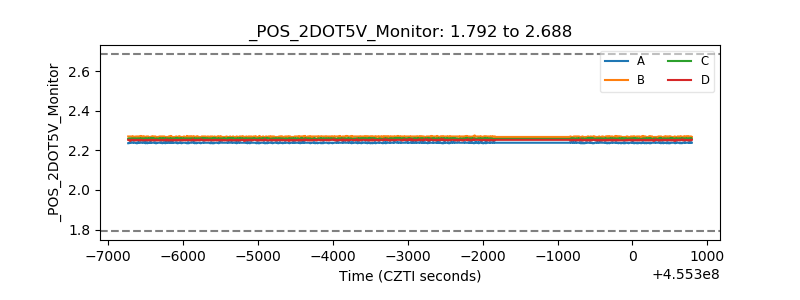

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
