| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T08_9000006292_46991cztM0_level2.fits | modeM0/AS1A13_071T08_9000006292_46991cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,627,167,680 | 315,936,000 |
| Size | 2.4 GB | 301.3 MB |
| Events in quadrant A | 21,893,049 | 2,427,185 |
| Events in quadrant B | 46,433,142 | 1,013,786 |
| Events in quadrant C | 12,185,448 | 2,371,305 |
| Events in quadrant D | 14,938,437 | 2,146,502 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 474 | 0 |
| B | 0 | 474 | 0 |
| C | 0 | 474 | 0 |
| D | 0 | 474 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 80370 | 6 |
| B | 0 | 154003 | 5 |
| C | 0 | 53353 | 5 |
| D | 0 | 61007 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 23335 | 527 | 2.258410% |
| B | 23335 | 15184 | 65.069638% |
| C | 23335 | 657 | 2.815513% |
| D | 23335 | 1110 | 4.756803% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 25170 | 23341 | 45 | 45 | 0.18% | 0.19% |  |
| B | 25170 | 23341 | 13279 | 13279 | 52.76% | 56.89% |  |
| C | 25170 | 23341 | 503 | 503 | 2.00% | 2.16% |  |
| D | 25170 | 23341 | 932 | 932 | 3.70% | 3.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 11761545 | 22367.12 | 2543 | 2486 | 525.7 |
| A | 9 | 191 | 122545 | 228.37 | 2543 | 2486 | 525.7 |
| A | 0 | 243 | 65686 | 120.21 | 2543 | 2486 | 525.7 |
| B | 3 | 112 | 38169387 | 102962.95 | 1900 | 1835 | 370.7 |
| B | 4 | 171 | 298526 | 800.37 | 1900 | 1835 | 370.7 |
| B | 5 | 255 | 231568 | 619.74 | 1900 | 1835 | 370.7 |
| C | 14 | 254 | 1764801 | 3001.81 | 2509 | 2516 | 587.1 |
| C | 12 | 2 | 562976 | 954.67 | 2509 | 2516 | 587.1 |
| C | 12 | 250 | 41859 | 67.02 | 2509 | 2516 | 587.1 |
| D | 1 | 52 | 2505304 | 4056.79 | 2474 | 2400 | 617.0 |
| D | 13 | 249 | 1027085 | 1660.84 | 2474 | 2400 | 617.0 |
| D | 2 | 249 | 722771 | 1167.6 | 2474 | 2400 | 617.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

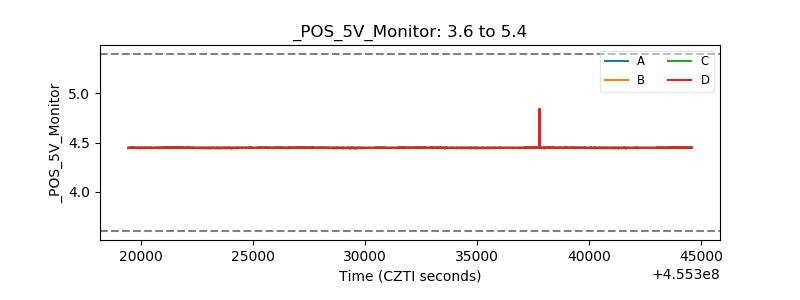

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
