| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_006T01_9000006294_47001cztM0_level2.fits | modeM0/AS1C09_006T01_9000006294_47001cztM0_level2_quad_clean.evt |
| Size (bytes) | 874,771,200 | 101,067,840 |
| Size | 834.2 MB | 96.4 MB |
| Events in quadrant A | 6,922,352 | 786,829 |
| Events in quadrant B | 14,899,850 | 328,580 |
| Events in quadrant C | 4,052,776 | 766,869 |
| Events in quadrant D | 5,935,406 | 664,300 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25364 | 3 |
| B | 0 | 49307 | 1 |
| C | 0 | 17513 | 0 |
| D | 0 | 22970 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7374 | 139 | 1.885001% |
| B | 7374 | 4866 | 65.988609% |
| C | 7375 | 166 | 2.250847% |
| D | 7375 | 659 | 8.935593% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7375 | 7375 | 4 | 4 | 0.05% | 0.05% |  |
| B | 7374 | 7374 | 4378 | 4378 | 59.37% | 59.37% |  |
| C | 7374 | 7374 | 143 | 143 | 1.94% | 1.94% |  |
| D | 7375 | 7375 | 608 | 608 | 8.24% | 8.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3594063 | 20870.52 | 820 | 803 | 172.2 |
| A | 9 | 191 | 87971 | 506.29 | 820 | 803 | 172.2 |
| A | 15 | 235 | 40463 | 230.35 | 820 | 803 | 172.2 |
| B | 3 | 112 | 12335639 | 101613.99 | 611 | 593 | 121.4 |
| B | 4 | 171 | 63665 | 519.57 | 611 | 593 | 121.4 |
| B | 0 | 200 | 30958 | 250.14 | 611 | 593 | 121.4 |
| C | 14 | 254 | 663551 | 3479.5 | 806 | 808 | 190.5 |
| C | 3 | 233 | 207631 | 1085.85 | 806 | 808 | 190.5 |
| C | 0 | 207 | 19595 | 98.63 | 806 | 808 | 190.5 |
| D | 13 | 249 | 1695192 | 8530.19 | 779 | 753 | 198.6 |
| D | 1 | 52 | 902704 | 4540.63 | 779 | 753 | 198.6 |
| D | 2 | 249 | 129005 | 645.65 | 779 | 753 | 198.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

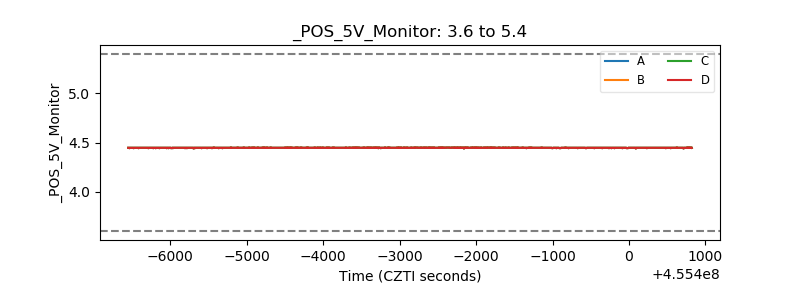

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
