| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_006T01_9000006294_47009cztM0_level2.fits | modeM0/AS1C09_006T01_9000006294_47009cztM0_level2_quad_clean.evt |
| Size (bytes) | 783,858,240 | 92,093,760 |
| Size | 747.5 MB | 87.8 MB |
| Events in quadrant A | 6,432,105 | 722,189 |
| Events in quadrant B | 13,342,544 | 250,862 |
| Events in quadrant C | 3,217,011 | 721,788 |
| Events in quadrant D | 5,518,044 | 638,011 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23280 | 1 |
| B | 0 | 44077 | 1 |
| C | 0 | 14081 | 1 |
| D | 0 | 20841 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6530 | 267 | 4.088821% |
| B | 6531 | 4952 | 75.822998% |
| C | 6531 | 107 | 1.638340% |
| D | 6531 | 530 | 8.115143% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7630 | 6531 | 26 | 26 | 0.34% | 0.40% |  |
| B | 7631 | 6532 | 3994 | 3994 | 52.34% | 61.15% |  |
| C | 7631 | 6532 | 63 | 63 | 0.83% | 0.96% |  |
| D | 7631 | 6532 | 379 | 379 | 4.97% | 5.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3465031 | 21805.87 | 759 | 740 | 158.9 |
| A | 9 | 191 | 21645 | 131.58 | 759 | 740 | 158.9 |
| A | 13 | 254 | 11049 | 64.89 | 759 | 740 | 158.9 |
| B | 3 | 112 | 10776108 | 93574.15 | 585 | 570 | 115.2 |
| B | 5 | 255 | 109421 | 945.26 | 585 | 570 | 115.2 |
| B | 0 | 200 | 63358 | 545.25 | 585 | 570 | 115.2 |
| C | 14 | 254 | 241035 | 1377.42 | 742 | 746 | 174.4 |
| C | 3 | 233 | 71182 | 403.76 | 742 | 746 | 174.4 |
| C | 12 | 250 | 8391 | 43.82 | 742 | 746 | 174.4 |
| D | 1 | 52 | 1851557 | 10038.12 | 729 | 706 | 184.4 |
| D | 13 | 249 | 680603 | 3687.43 | 729 | 706 | 184.4 |
| D | 13 | 29 | 84599 | 455.0 | 729 | 706 | 184.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

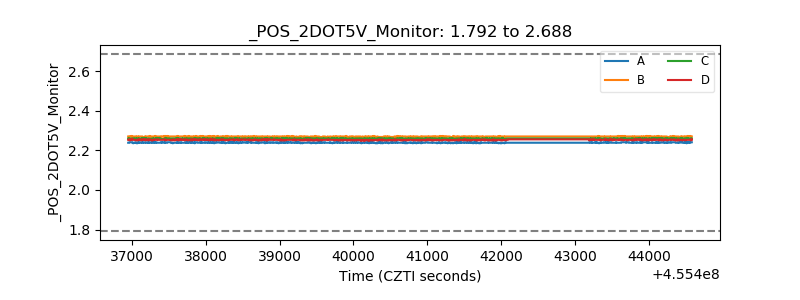

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
