| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_006T01_9000006294_47014cztM0_level2.fits | modeM0/AS1C09_006T01_9000006294_47014cztM0_level2_quad_clean.evt |
| Size (bytes) | 635,065,920 | 104,207,040 |
| Size | 605.6 MB | 99.4 MB |
| Events in quadrant A | 6,617,922 | 727,745 |
| Events in quadrant B | 9,286,632 | 549,946 |
| Events in quadrant C | 3,180,111 | 733,216 |
| Events in quadrant D | 3,890,653 | 665,701 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24337 | 0 |
| B | 0 | 32344 | 0 |
| C | 0 | 14498 | 0 |
| D | 0 | 16604 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6872 | 264 | 3.841676% |
| B | 6872 | 2243 | 32.639697% |
| C | 6873 | 62 | 0.902081% |
| D | 6873 | 210 | 3.055434% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7417 | 6874 | 14 | 14 | 0.19% | 0.20% |  |
| B | 7417 | 6874 | 1819 | 1819 | 24.52% | 26.46% |  |
| C | 7418 | 6875 | 19 | 19 | 0.26% | 0.28% |  |
| D | 7418 | 6875 | 127 | 127 | 1.71% | 1.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3474468 | 21599.62 | 772 | 756 | 160.8 |
| A | 9 | 191 | 55269 | 338.96 | 772 | 756 | 160.8 |
| A | 13 | 248 | 55103 | 337.93 | 772 | 756 | 160.8 |
| B | 3 | 112 | 6031018 | 43885.48 | 691 | 670 | 137.4 |
| B | 5 | 255 | 185814 | 1347.37 | 691 | 670 | 137.4 |
| B | 0 | 200 | 163896 | 1187.87 | 691 | 670 | 137.4 |
| C | 1 | 3 | 87913 | 478.58 | 770 | 773 | 182.1 |
| C | 14 | 254 | 68074 | 369.62 | 770 | 773 | 182.1 |
| C | 3 | 233 | 9850 | 49.85 | 770 | 773 | 182.1 |
| D | 13 | 249 | 489371 | 2550.82 | 766 | 744 | 191.6 |
| D | 12 | 233 | 126417 | 656.06 | 766 | 744 | 191.6 |
| D | 1 | 52 | 98573 | 510.7 | 766 | 744 | 191.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

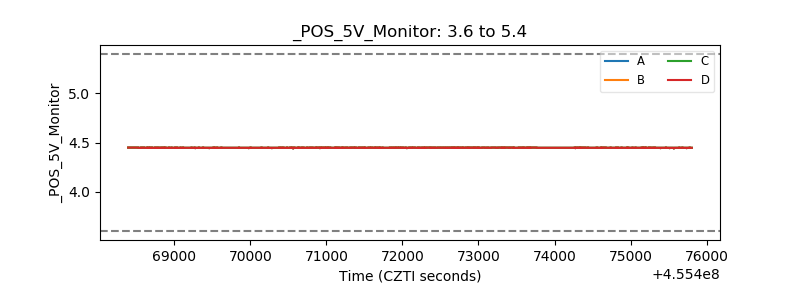

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
