| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_005T01_9000006296_47020cztM0_level2.fits | modeM0/AS1C09_005T01_9000006296_47020cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,170,538,560 | 181,275,840 |
| Size | 1.1 GB | 172.9 MB |
| Events in quadrant A | 11,642,522 | 1,289,186 |
| Events in quadrant B | 18,998,851 | 886,989 |
| Events in quadrant C | 5,685,985 | 1,274,126 |
| Events in quadrant D | 6,037,023 | 1,174,025 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 256 | 0 |
| B | 0 | 256 | 0 |
| C | 0 | 256 | 0 |
| D | 0 | 256 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42495 | 2 |
| B | 0 | 65159 | 2 |
| C | 0 | 26364 | 2 |
| D | 0 | 27395 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12485 | 277 | 2.218662% |
| B | 12485 | 4832 | 38.702443% |
| C | 12485 | 129 | 1.033240% |
| D | 12486 | 157 | 1.257408% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13530 | 12487 | 19 | 19 | 0.14% | 0.15% |  |
| B | 13530 | 12487 | 3709 | 3709 | 27.41% | 29.70% |  |
| C | 13530 | 12487 | 81 | 81 | 0.60% | 0.65% |  |
| D | 13531 | 12488 | 86 | 86 | 0.64% | 0.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 6179699 | 22024.48 | 1347 | 1314 | 280.5 |
| A | 9 | 191 | 179101 | 633.77 | 1347 | 1314 | 280.5 |
| A | 14 | 235 | 24336 | 82.07 | 1347 | 1314 | 280.5 |
| B | 3 | 112 | 13841182 | 60692.46 | 1169 | 1127 | 228.0 |
| B | 0 | 200 | 134346 | 584.2 | 1169 | 1127 | 228.0 |
| B | 5 | 255 | 113438 | 492.51 | 1169 | 1127 | 228.0 |
| C | 14 | 254 | 416956 | 1328.93 | 1331 | 1335 | 312.7 |
| C | 12 | 250 | 50256 | 156.42 | 1331 | 1335 | 312.7 |
| C | 12 | 249 | 20790 | 62.21 | 1331 | 1335 | 312.7 |
| D | 2 | 249 | 382412 | 1151.6 | 1329 | 1286 | 331.0 |
| D | 13 | 249 | 243385 | 731.52 | 1329 | 1286 | 331.0 |
| D | 2 | 234 | 66904 | 198.27 | 1329 | 1286 | 331.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

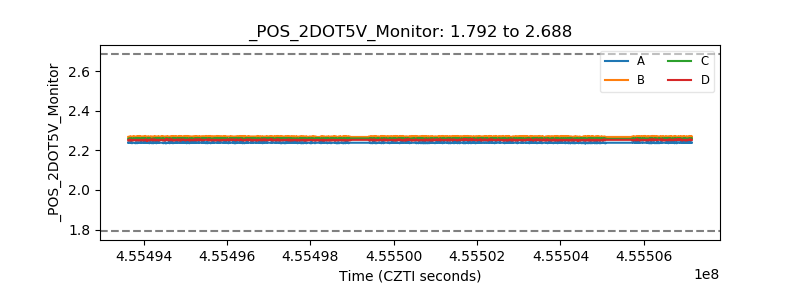

| +2.5 Volts monitor |  |

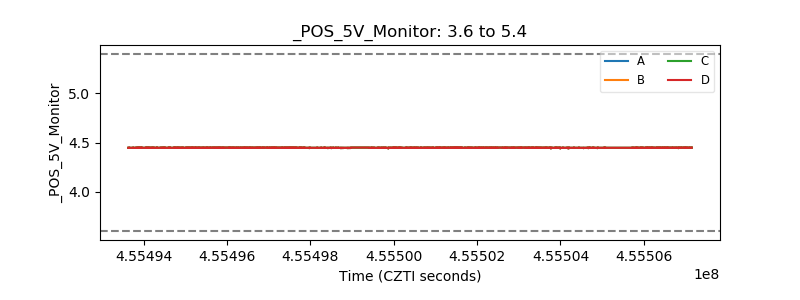

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
