| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_005T01_9000006296_47053cztM0_level2.fits | modeM0/AS1C09_005T01_9000006296_47053cztM0_level2_quad_clean.evt |
| Size (bytes) | 429,284,160 | 97,067,520 |
| Size | 409.4 MB | 92.6 MB |
| Events in quadrant A | 5,443,358 | 641,402 |
| Events in quadrant B | 3,462,738 | 662,888 |
| Events in quadrant C | 2,646,504 | 649,882 |
| Events in quadrant D | 3,893,308 | 584,481 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 2 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20287 | 474 |
| B | 0 | 14201 | 251 |
| C | 0 | 12228 | 237 |
| D | 0 | 15799 | 288 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5718 | 149 | 2.605806% |
| B | 5740 | 137 | 2.386760% |
| C | 5728 | 38 | 0.663408% |
| D | 5730 | 203 | 3.542757% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6961 | 5736 | 12 | 12 | 0.17% | 0.21% |  |
| B | 6954 | 5771 | 68 | 68 | 0.98% | 1.18% |  |
| C | 6964 | 5755 | 10 | 10 | 0.14% | 0.17% |  |
| D | 6963 | 5756 | 149 | 149 | 2.14% | 2.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2893142 | 21745.54 | 646 | 633 | 133.0 |
| A | 9 | 191 | 30817 | 226.92 | 646 | 633 | 133.0 |
| A | 0 | 243 | 10837 | 76.71 | 646 | 633 | 133.0 |
| B | 3 | 112 | 511286 | 4169.66 | 640 | 621 | 122.5 |
| B | 5 | 172 | 237687 | 1935.68 | 640 | 621 | 122.5 |
| B | 4 | 171 | 129373 | 1051.28 | 640 | 621 | 122.5 |
| C | 14 | 254 | 101210 | 670.88 | 644 | 648 | 149.9 |
| C | 14 | 220 | 23786 | 154.36 | 644 | 648 | 149.9 |
| C | 12 | 250 | 6865 | 41.48 | 644 | 648 | 149.9 |
| D | 1 | 52 | 1017427 | 6336.29 | 642 | 623 | 160.5 |
| D | 13 | 249 | 212977 | 1323.3 | 642 | 623 | 160.5 |
| D | 14 | 34 | 81206 | 502.16 | 642 | 623 | 160.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

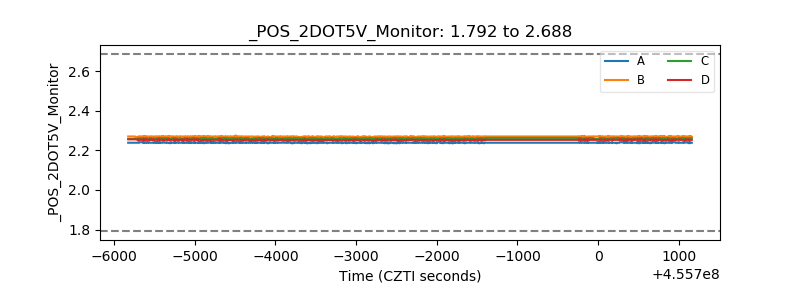

| +2.5 Volts monitor |  |

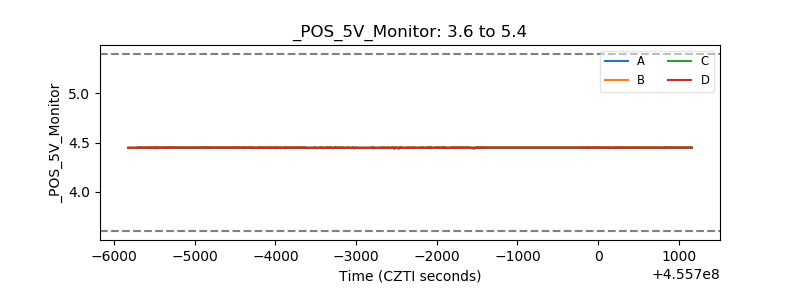

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
