| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_005T01_9000006296_47054cztM0_level2.fits | modeM0/AS1C09_005T01_9000006296_47054cztM0_level2_quad_clean.evt |
| Size (bytes) | 522,152,640 | 116,398,080 |
| Size | 498.0 MB | 111.0 MB |
| Events in quadrant A | 6,783,291 | 777,144 |
| Events in quadrant B | 4,655,787 | 785,807 |
| Events in quadrant C | 3,195,142 | 782,433 |
| Events in quadrant D | 4,173,642 | 711,428 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 2 |
| B | 0 | 136 | 2 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24769 | 354 |
| B | 0 | 18335 | 158 |
| C | 0 | 14303 | 150 |
| D | 0 | 17080 | 176 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6714 | 250 | 3.723563% |
| B | 6717 | 329 | 4.898020% |
| C | 6718 | 76 | 1.131289% |
| D | 6717 | 131 | 1.950275% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7866 | 6716 | 37 | 37 | 0.47% | 0.55% |  |
| B | 7870 | 6720 | 148 | 148 | 1.88% | 2.20% |  |
| C | 7868 | 6719 | 21 | 21 | 0.27% | 0.31% |  |
| D | 7868 | 6719 | 73 | 73 | 0.93% | 1.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3502174 | 21986.93 | 778 | 763 | 159.2 |
| A | 13 | 248 | 252701 | 1582.03 | 778 | 763 | 159.2 |
| A | 13 | 254 | 12180 | 71.69 | 778 | 763 | 159.2 |
| B | 5 | 172 | 859657 | 5907.98 | 760 | 739 | 145.4 |
| B | 3 | 112 | 599132 | 4115.99 | 760 | 739 | 145.4 |
| B | 5 | 32 | 73184 | 498.31 | 760 | 739 | 145.4 |
| C | 14 | 254 | 167855 | 926.56 | 773 | 776 | 180.3 |
| C | 12 | 250 | 7893 | 39.47 | 773 | 776 | 180.3 |
| C | 13 | 61 | 5103 | 24.0 | 773 | 776 | 180.3 |
| D | 1 | 52 | 640305 | 3350.82 | 771 | 747 | 190.9 |
| D | 13 | 249 | 264972 | 1384.35 | 771 | 747 | 190.9 |
| D | 1 | 47 | 89406 | 464.51 | 771 | 747 | 190.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

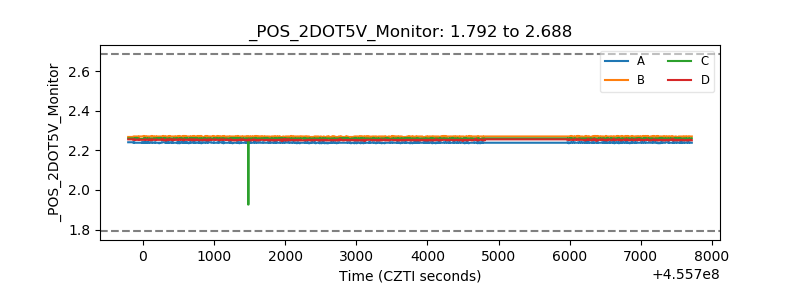

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
