| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_005T01_9000006296_47057cztM0_level2.fits | modeM0/AS1C09_005T01_9000006296_47057cztM0_level2_quad_clean.evt |
| Size (bytes) | 571,464,000 | 94,196,160 |
| Size | 545.0 MB | 89.8 MB |
| Events in quadrant A | 5,960,851 | 650,243 |
| Events in quadrant B | 8,360,405 | 506,271 |
| Events in quadrant C | 2,684,761 | 658,857 |
| Events in quadrant D | 3,666,237 | 602,558 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22076 | 2 |
| B | 0 | 29179 | 1 |
| C | 0 | 12779 | 1 |
| D | 0 | 15334 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6210 | 247 | 3.977456% |
| B | 6211 | 1939 | 31.218805% |
| C | 6211 | 77 | 1.239736% |
| D | 6211 | 178 | 2.865883% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6945 | 6211 | 1 | 1 | 0.01% | 0.02% |  |
| B | 6946 | 6212 | 1305 | 1305 | 18.79% | 21.01% |  |
| C | 6946 | 6212 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6946 | 6212 | 76 | 76 | 1.09% | 1.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3248517 | 23185.9 | 676 | 660 | 140.1 |
| A | 9 | 191 | 41893 | 294.36 | 676 | 660 | 140.1 |
| A | 13 | 248 | 30897 | 215.86 | 676 | 660 | 140.1 |
| B | 3 | 112 | 5542069 | 46318.37 | 615 | 595 | 119.6 |
| B | 5 | 172 | 229218 | 1910.94 | 615 | 595 | 119.6 |
| B | 5 | 255 | 71132 | 589.58 | 615 | 595 | 119.6 |
| C | 14 | 254 | 48916 | 307.96 | 670 | 670 | 156.7 |
| C | 7 | 220 | 10393 | 62.06 | 670 | 670 | 156.7 |
| C | 12 | 250 | 9324 | 55.24 | 670 | 670 | 156.7 |
| D | 1 | 52 | 595282 | 3519.75 | 670 | 647 | 168.9 |
| D | 1 | 47 | 134899 | 794.66 | 670 | 647 | 168.9 |
| D | 12 | 233 | 94809 | 557.36 | 670 | 647 | 168.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

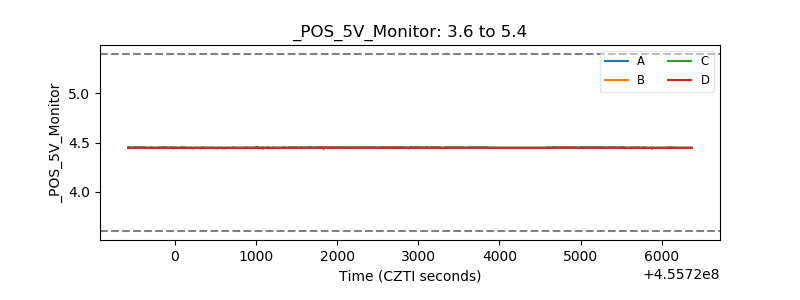

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
