| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_005T01_9000006296_47066cztM0_level2.fits | modeM0/AS1C09_005T01_9000006296_47066cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,988,160 | 115,845,120 |
| Size | 459.7 MB | 110.5 MB |
| Events in quadrant A | 6,935,579 | 761,407 |
| Events in quadrant B | 3,459,478 | 795,793 |
| Events in quadrant C | 3,138,782 | 764,071 |
| Events in quadrant D | 3,759,658 | 694,790 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25470 | 2 |
| B | 0 | 14935 | 2 |
| C | 0 | 14452 | 2 |
| D | 0 | 16181 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7062 | 216 | 3.058624% |
| B | 7062 | 32 | 0.453129% |
| C | 7063 | 50 | 0.707914% |
| D | 7063 | 150 | 2.123743% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9017 | 7064 | 40 | 40 | 0.44% | 0.57% |  |
| B | 9017 | 7064 | 7 | 7 | 0.08% | 0.10% |  |
| C | 9018 | 7065 | 4 | 4 | 0.04% | 0.06% |  |
| D | 9018 | 7065 | 86 | 86 | 0.95% | 1.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3859950 | 23834.01 | 784 | 765 | 161.9 |
| A | 7 | 3 | 15153 | 88.86 | 784 | 765 | 161.9 |
| A | 13 | 254 | 12596 | 73.07 | 784 | 765 | 161.9 |
| B | 3 | 112 | 204792 | 1312.62 | 788 | 762 | 155.4 |
| B | 5 | 255 | 39696 | 250.48 | 788 | 762 | 155.4 |
| B | 5 | 32 | 29131 | 182.51 | 788 | 762 | 155.4 |
| C | 12 | 249 | 32937 | 174.53 | 785 | 788 | 184.2 |
| C | 12 | 250 | 19484 | 101.5 | 785 | 788 | 184.2 |
| C | 12 | 2 | 12190 | 61.9 | 785 | 788 | 184.2 |
| D | 1 | 52 | 337253 | 1722.67 | 779 | 756 | 195.3 |
| D | 13 | 249 | 320182 | 1635.28 | 779 | 756 | 195.3 |
| D | 12 | 233 | 41405 | 208.1 | 779 | 756 | 195.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

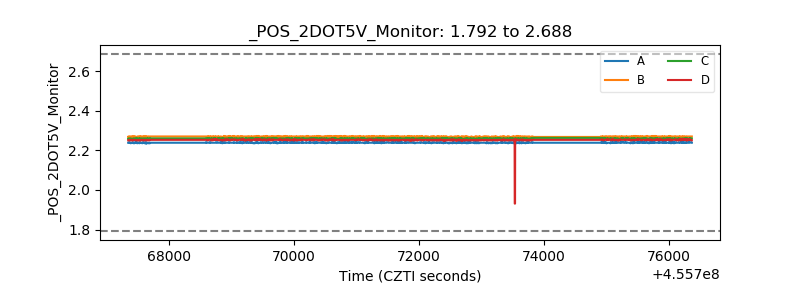

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
