| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_005T01_9000006296_47071cztM0_level2.fits | modeM0/AS1C09_005T01_9000006296_47071cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,404,569,600 | 532,224,000 |
| Size | 2.2 GB | 507.6 MB |
| Events in quadrant A | 30,987,638 | 3,531,764 |
| Events in quadrant B | 21,145,161 | 3,611,886 |
| Events in quadrant C | 14,555,427 | 3,571,946 |
| Events in quadrant D | 19,840,522 | 3,188,930 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 64 | 0 |
| B | 0 | 64 | 0 |
| C | 0 | 64 | 0 |
| D | 0 | 64 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 656 | 0 |
| B | 0 | 656 | 0 |
| C | 0 | 656 | 0 |
| D | 0 | 656 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 113502 | 10 |
| B | 0 | 84354 | 6 |
| C | 0 | 66946 | 6 |
| D | 0 | 81542 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 32160 | 986 | 3.065920% |
| B | 32162 | 1233 | 3.833717% |
| C | 32162 | 306 | 0.951433% |
| D | 32162 | 1486 | 4.620359% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 38681 | 32167 | 95 | 95 | 0.25% | 0.30% |  |
| B | 38682 | 32168 | 522 | 522 | 1.35% | 1.62% |  |
| C | 38682 | 32168 | 93 | 93 | 0.24% | 0.29% |  |
| D | 38682 | 32168 | 1088 | 1088 | 2.81% | 3.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 16853796 | 23012.56 | 3591 | 3511 | 732.2 |
| A | 13 | 248 | 86714 | 113.63 | 3591 | 3511 | 732.2 |
| A | 13 | 254 | 55551 | 71.07 | 3591 | 3511 | 732.2 |
| B | 3 | 112 | 5801524 | 8526.3 | 3540 | 3424 | 680.0 |
| B | 5 | 172 | 313209 | 455.55 | 3540 | 3424 | 680.0 |
| B | 5 | 255 | 290087 | 421.55 | 3540 | 3424 | 680.0 |
| C | 12 | 249 | 443112 | 534.79 | 3556 | 3570 | 821.9 |
| C | 14 | 254 | 170076 | 202.59 | 3556 | 3570 | 821.9 |
| C | 12 | 250 | 45993 | 51.62 | 3556 | 3570 | 821.9 |
| D | 1 | 52 | 2163841 | 2477.51 | 3527 | 3419 | 872.0 |
| D | 13 | 249 | 1178697 | 1347.77 | 3527 | 3419 | 872.0 |
| D | 2 | 249 | 1128042 | 1289.68 | 3527 | 3419 | 872.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

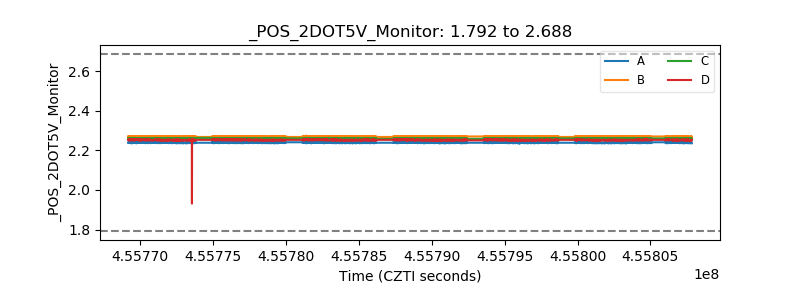

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
