| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006298_47082cztM0_level2.fits | modeM0/AS1C09_003T01_9000006298_47082cztM0_level2_quad_clean.evt |
| Size (bytes) | 51,958,080 | 8,674,560 |
| Size | 49.6 MB | 8.3 MB |
| Events in quadrant A | 507,552 | 36,725 |
| Events in quadrant B | 482,690 | 52,036 |
| Events in quadrant C | 416,181 | 61,005 |
| Events in quadrant D | 460,213 | 57,467 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 6 |
| B | 0 | 13 | 4 |
| C | 0 | 15 | 5 |
| D | 0 | 14 | 5 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16544 | 14653 |
| B | 0 | 11867 | 10007 |
| C | 0 | 9619 | 7842 |
| D | 0 | 11119 | 9258 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 90 | 68 |
| B | 0 | 99 | 81 |
| C | 0 | 84 | 62 |
| D | 0 | 93 | 73 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 475 | 19 | 4.000000% |
| B | 662 | 21 | 3.172205% |
| C | 808 | 1 | 0.123762% |
| D | 756 | 6 | 0.793651% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5681 | 735 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6014 | 1012 | 1 | 1 | 0.02% | 0.10% |  |
| C | 6046 | 1217 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6060 | 1127 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 273991 | 18932.99 | 59 | 58 | 14.5 |
| A | 0 | 243 | 1732 | 115.7 | 59 | 58 | 14.5 |
| A | 13 | 254 | 894 | 57.78 | 59 | 58 | 14.5 |
| B | 5 | 173 | 65919 | 3597.05 | 80 | 77 | 18.3 |
| B | 3 | 112 | 62938 | 3434.19 | 80 | 77 | 18.3 |
| B | 5 | 255 | 14435 | 784.4 | 80 | 77 | 18.3 |
| C | 14 | 220 | 27242 | 1100.79 | 97 | 97 | 24.7 |
| C | 14 | 254 | 3424 | 134.92 | 97 | 97 | 24.7 |
| C | 3 | 233 | 2515 | 98.06 | 97 | 97 | 24.7 |
| D | 12 | 233 | 26110 | 1079.82 | 91 | 87 | 24.1 |
| D | 1 | 52 | 18766 | 775.08 | 91 | 87 | 24.1 |
| D | 13 | 171 | 18294 | 755.49 | 91 | 87 | 24.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

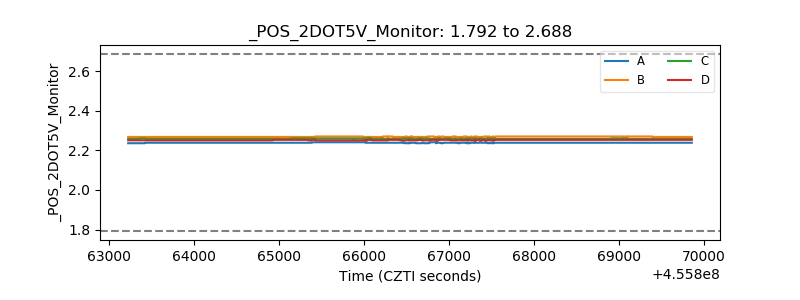

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
