| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006298_47087cztM0_level2.fits | modeM0/AS1C09_003T01_9000006298_47087cztM0_level2_quad_clean.evt |
| Size (bytes) | 551,759,040 | 119,364,480 |
| Size | 526.2 MB | 113.8 MB |
| Events in quadrant A | 7,452,926 | 790,294 |
| Events in quadrant B | 4,446,882 | 801,142 |
| Events in quadrant C | 3,448,233 | 778,448 |
| Events in quadrant D | 4,481,869 | 711,608 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27957 | 1 |
| B | 0 | 18421 | 1 |
| C | 0 | 16058 | 1 |
| D | 0 | 18668 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7660 | 433 | 5.652742% |
| B | 7661 | 423 | 5.521472% |
| C | 7661 | 177 | 2.310403% |
| D | 7661 | 352 | 4.594700% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7720 | 7661 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7721 | 7662 | 64 | 64 | 0.83% | 0.84% |  |
| C | 7721 | 7662 | 4 | 4 | 0.05% | 0.05% |  |
| D | 7721 | 7662 | 132 | 132 | 1.71% | 1.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4047768 | 22585.84 | 861 | 841 | 179.2 |
| A | 13 | 248 | 26144 | 141.21 | 861 | 841 | 179.2 |
| A | 9 | 191 | 17835 | 94.84 | 861 | 841 | 179.2 |
| B | 3 | 112 | 415363 | 2472.66 | 852 | 823 | 167.6 |
| B | 0 | 190 | 240773 | 1431.26 | 852 | 823 | 167.6 |
| B | 0 | 200 | 155913 | 925.08 | 852 | 823 | 167.6 |
| C | 14 | 254 | 56566 | 284.67 | 842 | 843 | 195.7 |
| C | 12 | 2 | 34589 | 172.39 | 842 | 843 | 195.7 |
| C | 3 | 233 | 33140 | 164.99 | 842 | 843 | 195.7 |
| D | 1 | 47 | 293781 | 1385.2 | 845 | 814 | 211.5 |
| D | 13 | 249 | 168347 | 792.13 | 845 | 814 | 211.5 |
| D | 2 | 120 | 152141 | 715.5 | 845 | 814 | 211.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

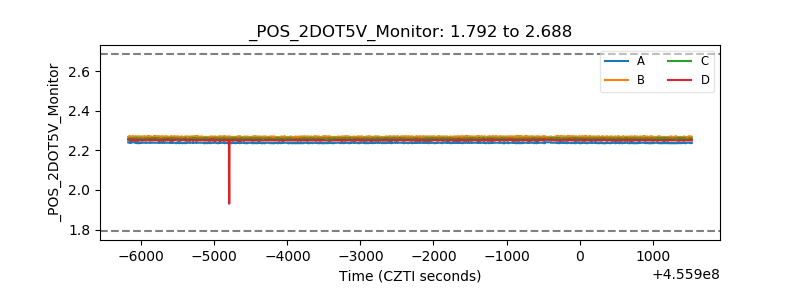

| +2.5 Volts monitor |  |

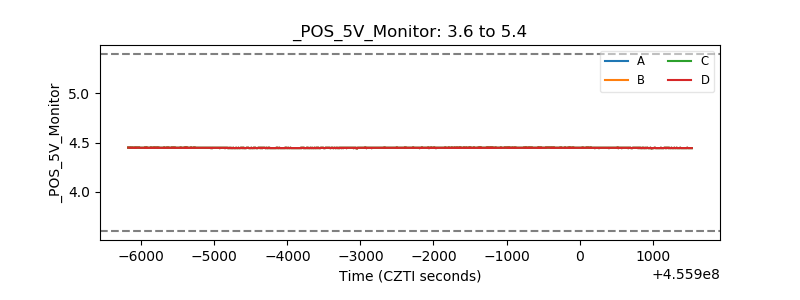

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
