| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006298_47101cztM0_level2.fits | modeM0/AS1C09_003T01_9000006298_47101cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,367,017,920 | 260,052,480 |
| Size | 1.3 GB | 248.0 MB |
| Events in quadrant A | 19,034,736 | 1,685,078 |
| Events in quadrant B | 10,131,836 | 1,772,156 |
| Events in quadrant C | 7,628,297 | 1,766,806 |
| Events in quadrant D | 12,487,640 | 1,471,065 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 69726 | 3 |
| B | 0 | 41487 | 3 |
| C | 0 | 35559 | 3 |
| D | 0 | 49138 | 10 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 350 | 0 |
| B | 0 | 350 | 0 |
| C | 0 | 350 | 0 |
| D | 0 | 350 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17080 | 1659 | 9.713115% |
| B | 17081 | 1035 | 6.059364% |
| C | 17081 | 324 | 1.896844% |
| D | 17080 | 1946 | 11.393443% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19435 | 17082 | 707 | 707 | 3.64% | 4.14% |  |
| B | 19436 | 17084 | 410 | 410 | 2.11% | 2.40% |  |
| C | 19436 | 17085 | 17 | 17 | 0.09% | 0.10% |  |
| D | 19435 | 17083 | 1365 | 1365 | 7.02% | 7.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 9443709 | 24595.53 | 1877 | 1837 | 383.9 |
| A | 9 | 191 | 1963582 | 5110.23 | 1877 | 1837 | 383.9 |
| A | 7 | 3 | 195317 | 504.0 | 1877 | 1837 | 383.9 |
| B | 5 | 32 | 1485423 | 4099.35 | 1880 | 1819 | 361.9 |
| B | 0 | 200 | 505008 | 1390.36 | 1880 | 1819 | 361.9 |
| B | 0 | 190 | 176552 | 482.8 | 1880 | 1819 | 361.9 |
| C | 14 | 254 | 149175 | 341.79 | 1868 | 1872 | 431.0 |
| C | 15 | 208 | 66684 | 150.38 | 1868 | 1872 | 431.0 |
| C | 12 | 2 | 35418 | 77.84 | 1868 | 1872 | 431.0 |
| D | 2 | 249 | 3900904 | 8598.28 | 1801 | 1738 | 453.5 |
| D | 12 | 128 | 380733 | 835.74 | 1801 | 1738 | 453.5 |
| D | 1 | 47 | 307824 | 674.97 | 1801 | 1738 | 453.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

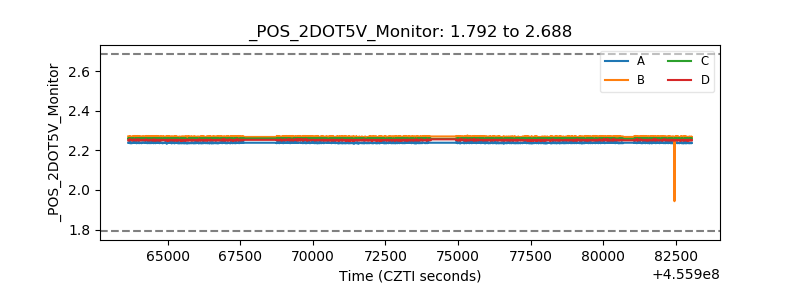

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
