| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006298_47102cztM0_level2.fits | modeM0/AS1C09_003T01_9000006298_47102cztM0_level2_quad_clean.evt |
| Size (bytes) | 576,230,400 | 108,961,920 |
| Size | 549.5 MB | 103.9 MB |
| Events in quadrant A | 7,030,385 | 752,039 |
| Events in quadrant B | 3,658,174 | 764,825 |
| Events in quadrant C | 3,150,635 | 724,738 |
| Events in quadrant D | 6,941,696 | 564,019 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26106 | 0 |
| B | 0 | 15687 | 0 |
| C | 0 | 14724 | 0 |
| D | 0 | 25588 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7082 | 243 | 3.431234% |
| B | 7082 | 148 | 2.089805% |
| C | 7083 | 33 | 0.465904% |
| D | 7083 | 1366 | 19.285613% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7082 | 7082 | 17 | 17 | 0.24% | 0.24% |  |
| B | 7082 | 7082 | 26 | 26 | 0.37% | 0.37% |  |
| C | 7083 | 7083 | 10 | 10 | 0.14% | 0.14% |  |
| D | 7083 | 7083 | 1117 | 1117 | 15.77% | 15.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3814087 | 23124.81 | 791 | 774 | 164.9 |
| A | 9 | 191 | 38161 | 226.72 | 791 | 774 | 164.9 |
| A | 7 | 3 | 32514 | 192.48 | 791 | 774 | 164.9 |
| B | 0 | 190 | 129913 | 831.42 | 786 | 760 | 155.3 |
| B | 0 | 200 | 96068 | 613.54 | 786 | 760 | 155.3 |
| B | 0 | 198 | 84110 | 536.56 | 786 | 760 | 155.3 |
| C | 12 | 2 | 66399 | 364.8 | 768 | 770 | 179.9 |
| C | 3 | 233 | 31285 | 169.62 | 768 | 770 | 179.9 |
| C | 11 | 16 | 18493 | 98.51 | 768 | 770 | 179.9 |
| D | 2 | 249 | 3151818 | 17375.2 | 717 | 693 | 181.4 |
| D | 13 | 171 | 312305 | 1718.22 | 717 | 693 | 181.4 |
| D | 12 | 128 | 188199 | 1033.9 | 717 | 693 | 181.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

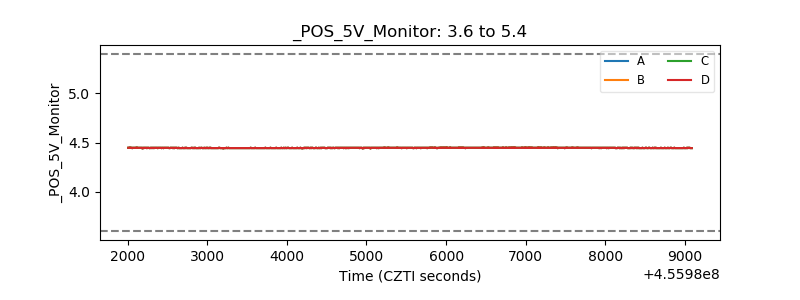

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
