| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006298_47106cztM0_level2.fits | modeM0/AS1C09_003T01_9000006298_47106cztM0_level2_quad_clean.evt |
| Size (bytes) | 965,344,320 | 212,247,360 |
| Size | 920.6 MB | 202.4 MB |
| Events in quadrant A | 13,724,210 | 1,392,812 |
| Events in quadrant B | 6,786,640 | 1,442,658 |
| Events in quadrant C | 6,093,209 | 1,382,739 |
| Events in quadrant D | 8,086,294 | 1,274,895 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 49797 | 3 |
| B | 0 | 29648 | 2 |
| C | 0 | 28349 | 2 |
| D | 0 | 33597 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 276 | 0 |
| B | 0 | 276 | 0 |
| C | 0 | 276 | 0 |
| D | 0 | 276 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13494 | 705 | 5.224544% |
| B | 13494 | 312 | 2.312139% |
| C | 13495 | 156 | 1.155984% |
| D | 13495 | 401 | 2.971471% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14569 | 13496 | 66 | 66 | 0.45% | 0.49% |  |
| B | 14569 | 13496 | 51 | 51 | 0.35% | 0.38% |  |
| C | 14570 | 13497 | 29 | 29 | 0.20% | 0.21% |  |
| D | 14570 | 13497 | 219 | 219 | 1.50% | 1.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 7507016 | 24264.84 | 1496 | 1465 | 309.3 |
| A | 7 | 3 | 112412 | 358.68 | 1496 | 1465 | 309.3 |
| A | 15 | 235 | 107300 | 342.16 | 1496 | 1465 | 309.3 |
| B | 5 | 32 | 174833 | 591.07 | 1503 | 1456 | 293.3 |
| B | 0 | 200 | 143089 | 482.85 | 1503 | 1456 | 293.3 |
| B | 0 | 190 | 136333 | 459.82 | 1503 | 1456 | 293.3 |
| C | 14 | 254 | 208693 | 599.54 | 1475 | 1481 | 345.6 |
| C | 12 | 2 | 84458 | 240.08 | 1475 | 1481 | 345.6 |
| C | 11 | 16 | 16714 | 44.07 | 1475 | 1481 | 345.6 |
| D | 2 | 249 | 925751 | 2536.99 | 1473 | 1424 | 364.3 |
| D | 1 | 47 | 287192 | 784.35 | 1473 | 1424 | 364.3 |
| D | 12 | 233 | 236488 | 645.18 | 1473 | 1424 | 364.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

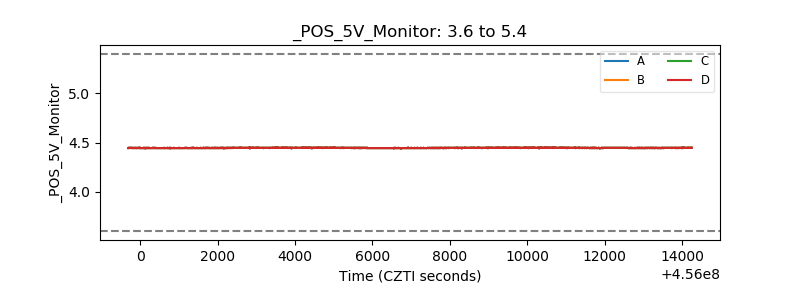

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
