| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006298_47108cztM0_level2.fits | modeM0/AS1C09_003T01_9000006298_47108cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,192,640 | 109,532,160 |
| Size | 468.4 MB | 104.5 MB |
| Events in quadrant A | 6,849,828 | 722,275 |
| Events in quadrant B | 3,433,973 | 752,732 |
| Events in quadrant C | 3,146,923 | 716,699 |
| Events in quadrant D | 4,216,278 | 643,873 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24860 | 2 |
| B | 0 | 15105 | 2 |
| C | 0 | 14568 | 2 |
| D | 0 | 17716 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6899 | 293 | 4.246992% |
| B | 6899 | 83 | 1.203073% |
| C | 6899 | 41 | 0.594289% |
| D | 6899 | 313 | 4.536889% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7874 | 6900 | 119 | 119 | 1.51% | 1.72% |  |
| B | 7874 | 6900 | 28 | 28 | 0.36% | 0.41% |  |
| C | 7874 | 6900 | 14 | 14 | 0.18% | 0.20% |  |
| D | 7874 | 6900 | 229 | 229 | 2.91% | 3.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3906632 | 25388.91 | 742 | 726 | 153.8 |
| A | 7 | 3 | 24109 | 151.99 | 742 | 726 | 153.8 |
| A | 9 | 191 | 15733 | 97.55 | 742 | 726 | 153.8 |
| B | 0 | 190 | 139278 | 937.67 | 751 | 728 | 147.8 |
| B | 5 | 32 | 107367 | 721.7 | 751 | 728 | 147.8 |
| B | 4 | 21 | 57997 | 387.58 | 751 | 728 | 147.8 |
| C | 14 | 254 | 142257 | 820.23 | 736 | 738 | 172.5 |
| C | 12 | 2 | 111674 | 642.98 | 736 | 738 | 172.5 |
| C | 3 | 233 | 7872 | 41.35 | 736 | 738 | 172.5 |
| D | 2 | 249 | 641681 | 3495.79 | 723 | 698 | 183.4 |
| D | 1 | 47 | 275186 | 1497.0 | 723 | 698 | 183.4 |
| D | 8 | 48 | 166611 | 904.86 | 723 | 698 | 183.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

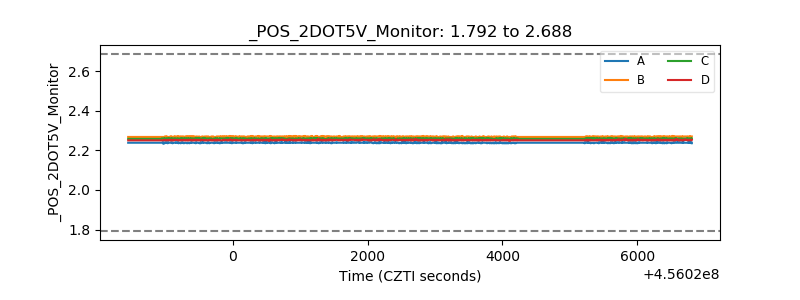

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
