| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006298_47116cztM0_level2.fits | modeM0/AS1C09_003T01_9000006298_47116cztM0_level2_quad_clean.evt |
| Size (bytes) | 611,640,000 | 120,859,200 |
| Size | 583.3 MB | 115.3 MB |
| Events in quadrant A | 7,610,558 | 807,464 |
| Events in quadrant B | 4,615,849 | 809,510 |
| Events in quadrant C | 4,129,876 | 787,343 |
| Events in quadrant D | 5,674,465 | 707,902 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28442 | 0 |
| B | 0 | 18900 | 0 |
| C | 0 | 18105 | 0 |
| D | 0 | 22413 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7872 | 460 | 5.843496% |
| B | 7872 | 525 | 6.669207% |
| C | 7873 | 338 | 4.293154% |
| D | 7872 | 610 | 7.748984% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7872 | 7872 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7872 | 7872 | 144 | 144 | 1.83% | 1.83% |  |
| C | 7873 | 7873 | 134 | 134 | 1.70% | 1.70% |  |
| D | 7872 | 7872 | 346 | 346 | 4.40% | 4.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4124794 | 22307.79 | 887 | 866 | 184.9 |
| A | 14 | 248 | 15630 | 79.86 | 887 | 866 | 184.9 |
| A | 13 | 254 | 14095 | 71.56 | 887 | 866 | 184.9 |
| B | 5 | 32 | 448966 | 2602.46 | 877 | 847 | 172.2 |
| B | 0 | 190 | 199406 | 1153.13 | 877 | 847 | 172.2 |
| B | 4 | 21 | 157500 | 909.76 | 877 | 847 | 172.2 |
| C | 12 | 2 | 500285 | 2479.37 | 861 | 861 | 201.4 |
| C | 14 | 254 | 206955 | 1023.15 | 861 | 861 | 201.4 |
| C | 3 | 233 | 38763 | 188.16 | 861 | 861 | 201.4 |
| D | 1 | 47 | 1092304 | 5150.38 | 855 | 822 | 211.9 |
| D | 2 | 249 | 873978 | 4120.16 | 855 | 822 | 211.9 |
| D | 2 | 120 | 131866 | 618.36 | 855 | 822 | 211.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

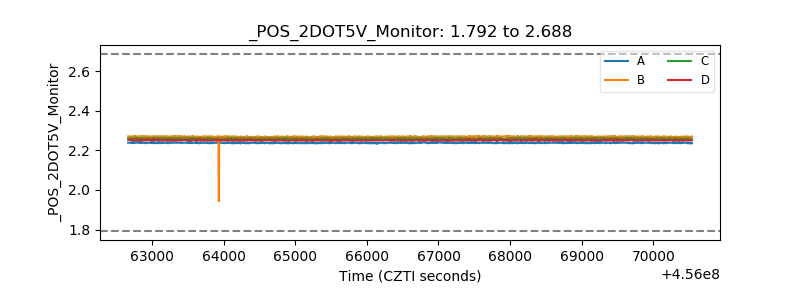

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
