| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006298_47117cztM0_level2.fits | modeM0/AS1C09_003T01_9000006298_47117cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,215,680 | 119,897,280 |
| Size | 520.0 MB | 114.3 MB |
| Events in quadrant A | 7,450,684 | 810,478 |
| Events in quadrant B | 4,069,404 | 814,683 |
| Events in quadrant C | 3,519,341 | 768,151 |
| Events in quadrant D | 4,555,935 | 710,097 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27858 | 1 |
| B | 0 | 17027 | 0 |
| C | 0 | 16104 | 0 |
| D | 0 | 18810 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7570 | 125 | 1.651255% |
| B | 7570 | 119 | 1.571995% |
| C | 7571 | 63 | 0.832123% |
| D | 7571 | 168 | 2.218994% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7570 | 7570 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7570 | 7570 | 60 | 60 | 0.79% | 0.79% |  |
| C | 7571 | 7571 | 51 | 51 | 0.67% | 0.67% |  |
| D | 7571 | 7571 | 130 | 130 | 1.72% | 1.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4033751 | 23041.42 | 840 | 822 | 175.0 |
| A | 0 | 247 | 90402 | 511.8 | 840 | 822 | 175.0 |
| A | 13 | 248 | 18318 | 99.96 | 840 | 822 | 175.0 |
| B | 5 | 173 | 234992 | 1432.66 | 831 | 804 | 163.5 |
| B | 4 | 21 | 221702 | 1351.36 | 831 | 804 | 163.5 |
| B | 0 | 190 | 124540 | 756.96 | 831 | 804 | 163.5 |
| C | 14 | 254 | 205686 | 1084.49 | 808 | 809 | 188.9 |
| C | 12 | 2 | 134150 | 705.82 | 808 | 809 | 188.9 |
| C | 11 | 16 | 10334 | 50.42 | 808 | 809 | 188.9 |
| D | 2 | 249 | 470087 | 2305.78 | 814 | 785 | 203.5 |
| D | 12 | 233 | 454891 | 2231.12 | 814 | 785 | 203.5 |
| D | 1 | 47 | 180578 | 883.36 | 814 | 785 | 203.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

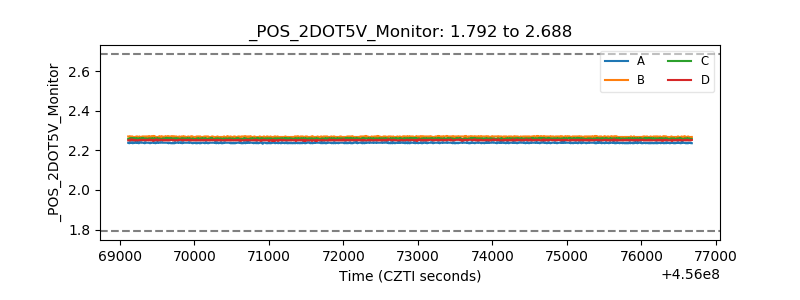

| +2.5 Volts monitor |  |

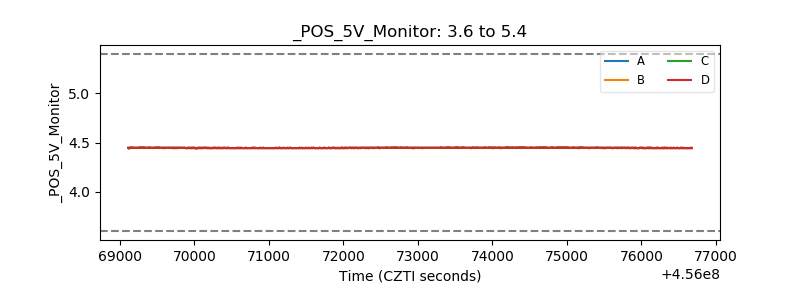

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
