Observation information
- date-obs: 2024-06-15
- time-obs: 03:55:05.363900000
- date-end: 2024-06-15
- time-end: 05:51:44.358800000
- obs_id: C09_003T01_9000006298
- exposure: 2638.22105473
- sourceid: Cas A
- observer: chandrasunil
- ra_pnt: 350.85
- dec_pnt: 58.815
Basic statistics of files
Param |
Original file |
Final file |
Filename | modeM0/AS1C09_003T01_9000006298_47126cztM0_level2.fits
| modeM0/AS1C09_003T01_9000006298_47126cztM0_level2_quad_clean.evt
|
Size (bytes) | 203,811,840 | 46,736,640 |
Size | 194.4 MB
| 44.6 MB
|
Events in quadrant A | 2,546,562 | 307,205 |
Events in quadrant B | 2,308,907 | 299,946 |
Events in quadrant C | 1,200,280 | 314,215 |
Events in quadrant D | 1,254,784 | 281,497 |
Level1 data integrity
Mode M9 |
Quadrant | BADHDUFLAG | Total packets | Discarded packets |
---|
A | 0 | 10 | 10 |
B | 0 | 7 | 7 |
C | 0 | 8 | 8 |
D | 0 | 8 | 8 |
Mode M0 |
Quadrant | BADHDUFLAG | Total packets | Discarded packets |
---|
A | 0 | 18155 | 8849 |
B | 0 | 14496 | 5596 |
C | 0 | 10313 | 4194 |
D | 0 | 11570 | 5380 |
Mode SS |
Quadrant | BADHDUFLAG | Total packets | Discarded packets |
---|
A | 0 | 99 | 35 |
B | 0 | 99 | 38 |
C | 0 | 105 | 44 |
D | 0 | 99 | 41 |
Data saturation
Quadrant | Total seconds | Saturated seconds | Saturation percentage |
---|
A | 2885 | 12 | 0.415945% |
B | 2980 | 267 | 8.959732% |
C | 3052 | 0 | 0.000000% |
D | 2985 | 6 | 0.201005% |
Noise dominated fraction
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
Quadrant |
# 1 sec bins |
Bins with >0 counts |
Bins with >2000 counts |
High rate bins dominated by noise |
Noise dominated (total time) |
Noise dominated (detector-on time) |
Marked lightcurve |
A | 6804 | 3060 | 2 | 2 | 0.03% | 0.07% | |
B | 6855 | 3154 | 244 | 244 | 3.56% | 7.74% | |
C | 6945 | 3230 | 0 | 0 | 0.00% | 0.00% | |
D | 6898 | 3181 | 5 | 5 | 0.07% | 0.16% | |
Top noisy pixels
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
Pixel properties |
Quadrant properties |
Quadrant |
DetID |
PixID |
Counts |
Sigma |
Mean |
Median |
Sigma |
A | 10 | 83 | 1365605 | 21686.01 | 298 | 292 | 63.0 |
A | 0 | 247 | 9895 | 152.53 | 298 | 292 | 63.0 |
A | 9 | 191 | 9536 | 146.83 | 298 | 292 | 63.0 |
B | 5 | 32 | 821105 | 14131.42 | 290 | 282 | 58.1 |
B | 8 | 234 | 106364 | 1826.32 | 290 | 282 | 58.1 |
B | 4 | 21 | 92524 | 1588.05 | 290 | 282 | 58.1 |
C | 14 | 254 | 9655 | 129.24 | 303 | 305 | 72.3 |
C | 15 | 208 | 2996 | 37.2 | 303 | 305 | 72.3 |
C | 13 | 61 | 2087 | 24.63 | 303 | 305 | 72.3 |
D | 2 | 249 | 22148 | 292.59 | 296 | 286 | 74.7 |
D | 5 | 171 | 18869 | 248.7 | 296 | 286 | 74.7 |
D | 14 | 34 | 18866 | 248.66 | 296 | 286 | 74.7 |
Detector plane histogram (DPH)
Histogram calculated using DETX and DETY for each event in the final _common_clean file
Quadrant A |
|
|
Quadrant B |
Quadrant D |
|
|
Quadrant C |
Count rate plots and images
Plot type |
Count rate plots |
Images |
Comparison with Poisson distribution
Blue bars denote a histogram of data divided into 1 sec bins.
Red curve is a Poisson curve with rate = median count rate of data. |
|
|
Quadrant-wise count rates
Data is divided into 100 sec bins |
|
|
Module-wise count rates for Quadrant A
Data is divided into 100 sec bins |
|
|
Module-wise count rates for Quadrant B
Data is divided into 100 sec bins |
|
|
Module-wise count rates for Quadrant C
Data is divided into 100 sec bins |
|
|
Module-wise count rates for Quadrant D
Data is divided into 100 sec bins |
|
|
Housekeeping plots
Parameter |
Plot |
CZT HV Monitor | |
D_VDD | |
Temperature 1 | |
Veto HV Monitor | |
Veto LLD | |
Alpha Counter | |
_CPM_Rate | |
CZT Counter | |

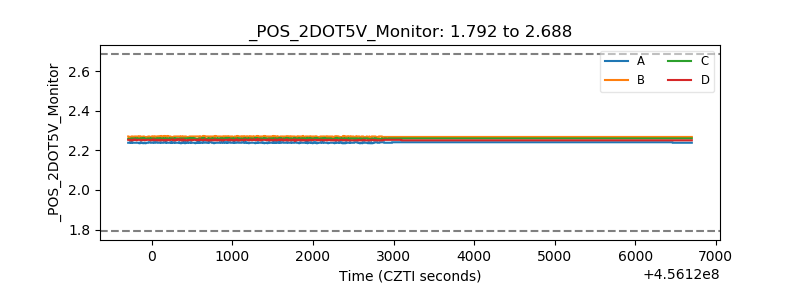

+2.5 Volts monitor | |
+5 Volts monitor | |
_ROLL_ROT | |
_Roll_DEC | |
_Roll_RA | |
Veto Counter | |
