| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006298_47130cztM0_level2.fits | modeM0/AS1C09_003T01_9000006298_47130cztM0_level2_quad_clean.evt |
| Size (bytes) | 517,584,960 | 113,757,120 |
| Size | 493.6 MB | 108.5 MB |
| Events in quadrant A | 7,164,343 | 747,341 |
| Events in quadrant B | 4,025,765 | 770,477 |
| Events in quadrant C | 3,202,341 | 740,902 |
| Events in quadrant D | 4,201,996 | 679,325 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26651 | 5 |
| B | 0 | 16851 | 2 |
| C | 0 | 15161 | 2 |
| D | 0 | 17840 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7276 | 414 | 5.689940% |
| B | 7277 | 344 | 4.727223% |
| C | 7277 | 149 | 2.047547% |
| D | 7277 | 296 | 4.067610% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7676 | 7277 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7677 | 7278 | 89 | 89 | 1.16% | 1.22% |  |
| C | 7677 | 7279 | 9 | 9 | 0.12% | 0.12% |  |
| D | 7677 | 7279 | 136 | 136 | 1.77% | 1.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3952619 | 23415.43 | 808 | 789 | 168.8 |
| A | 0 | 247 | 29133 | 167.94 | 808 | 789 | 168.8 |
| A | 9 | 191 | 18031 | 102.16 | 808 | 789 | 168.8 |
| B | 4 | 21 | 240716 | 1505.78 | 803 | 776 | 159.3 |
| B | 5 | 32 | 180136 | 1125.6 | 803 | 776 | 159.3 |
| B | 0 | 200 | 110491 | 688.53 | 803 | 776 | 159.3 |
| C | 14 | 254 | 97508 | 527.65 | 789 | 790 | 183.3 |
| C | 1 | 3 | 17329 | 90.23 | 789 | 790 | 183.3 |
| C | 13 | 61 | 5493 | 25.66 | 789 | 790 | 183.3 |
| D | 1 | 47 | 241301 | 1218.48 | 789 | 760 | 197.4 |
| D | 12 | 233 | 235825 | 1190.74 | 789 | 760 | 197.4 |
| D | 8 | 48 | 143350 | 722.3 | 789 | 760 | 197.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

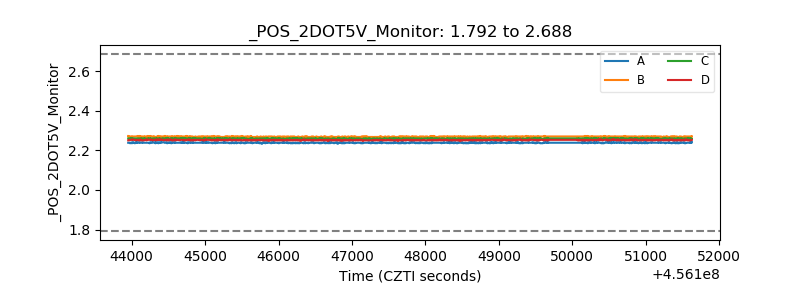

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
