Observation information
- date-obs: 2024-06-15
- time-obs: 20:52:57.333900000
- date-end: 2024-06-15
- time-end: 23:15:05.329200000
- obs_id: C09_003T01_9000006298
- exposure: 6700.55872226
- sourceid: Cas A
- observer: chandrasunil
- ra_pnt: 350.85
- dec_pnt: 58.815
Basic statistics of files
Param |
Original file |
Final file |
Filename | modeM0/AS1C09_003T01_9000006298_47136cztM0_level2.fits
| modeM0/AS1C09_003T01_9000006298_47136cztM0_level2_quad_clean.evt
|
Size (bytes) | 504,480,960 | 111,686,400 |
Size | 481.1 MB
| 106.5 MB
|
Events in quadrant A | 7,142,012 | 729,708 |
Events in quadrant B | 3,560,746 | 761,164 |
Events in quadrant C | 3,282,616 | 726,863 |
Events in quadrant D | 4,139,765 | 670,761 |
Level1 data integrity
Mode M9 |
Quadrant | BADHDUFLAG | Total packets | Discarded packets |
---|
A | 0 | 14 | 0 |
B | 0 | 14 | 0 |
C | 0 | 14 | 0 |
D | 0 | 14 | 0 |
Mode M0 |
Quadrant | BADHDUFLAG | Total packets | Discarded packets |
---|
A | 0 | 25987 | 2 |
B | 0 | 15534 | 2 |
C | 0 | 15058 | 2 |
D | 0 | 17433 | 2 |
Mode SS |
Quadrant | BADHDUFLAG | Total packets | Discarded packets |
---|
A | 0 | 146 | 0 |
B | 0 | 146 | 0 |
C | 0 | 146 | 0 |
D | 0 | 146 | 0 |
Data saturation
Quadrant | Total seconds | Saturated seconds | Saturation percentage |
---|
A | 7078 | 322 | 4.549308% |
B | 7078 | 79 | 1.116135% |
C | 7079 | 55 | 0.776946% |
D | 7079 | 190 | 2.683995% |
Noise dominated fraction
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
Quadrant |
# 1 sec bins |
Bins with >0 counts |
Bins with >2000 counts |
High rate bins dominated by noise |
Noise dominated (total time) |
Noise dominated (detector-on time) |
Marked lightcurve |
A | 8528 | 7079 | 76 | 76 | 0.89% | 1.07% | |
B | 8528 | 7079 | 22 | 22 | 0.26% | 0.31% | |
C | 8529 | 7081 | 21 | 21 | 0.25% | 0.30% | |
D | 8529 | 7081 | 128 | 128 | 1.50% | 1.81% | |
Top noisy pixels
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
Pixel properties |
Quadrant properties |
Quadrant |
DetID |
PixID |
Counts |
Sigma |
Mean |
Median |
Sigma |
A | 10 | 83 | 4107098 | 25637.23 | 770 | 753 | 160.2 |
A | 0 | 243 | 16190 | 96.38 | 770 | 753 | 160.2 |
A | 9 | 191 | 12036 | 70.44 | 770 | 753 | 160.2 |
B | 4 | 21 | 164032 | 1062.33 | 778 | 755 | 153.7 |
B | 5 | 32 | 70381 | 453.01 | 778 | 755 | 153.7 |
B | 0 | 200 | 56420 | 362.17 | 778 | 755 | 153.7 |
C | 14 | 254 | 138009 | 754.54 | 767 | 768 | 181.9 |
C | 15 | 208 | 133346 | 728.9 | 767 | 768 | 181.9 |
C | 3 | 233 | 12700 | 65.6 | 767 | 768 | 181.9 |
D | 12 | 233 | 241183 | 1271.06 | 759 | 737 | 189.2 |
D | 13 | 171 | 175047 | 921.45 | 759 | 737 | 189.2 |
D | 1 | 47 | 173396 | 912.72 | 759 | 737 | 189.2 |
Detector plane histogram (DPH)
Histogram calculated using DETX and DETY for each event in the final _common_clean file
Quadrant A |
|
|
Quadrant B |
Quadrant D |
|
|
Quadrant C |
Count rate plots and images
Plot type |
Count rate plots |
Images |
Comparison with Poisson distribution
Blue bars denote a histogram of data divided into 1 sec bins.
Red curve is a Poisson curve with rate = median count rate of data. |
|
|
Quadrant-wise count rates
Data is divided into 100 sec bins |
|
|
Module-wise count rates for Quadrant A
Data is divided into 100 sec bins |
|
|
Module-wise count rates for Quadrant B
Data is divided into 100 sec bins |
|
|
Module-wise count rates for Quadrant C
Data is divided into 100 sec bins |
|
|
Module-wise count rates for Quadrant D
Data is divided into 100 sec bins |
|
|
Housekeeping plots
Parameter |
Plot |
CZT HV Monitor | |
D_VDD | |
Temperature 1 | |
Veto HV Monitor | |
Veto LLD | |
Alpha Counter | |
_CPM_Rate | |
CZT Counter | |

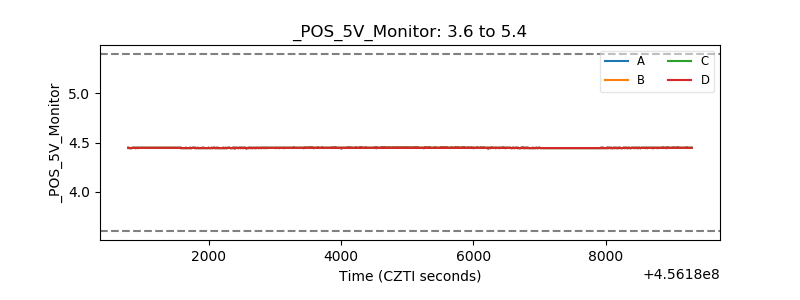

+2.5 Volts monitor | |
+5 Volts monitor | |
_ROLL_ROT | |
_Roll_DEC | |
_Roll_RA | |
Veto Counter | |
