| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006298_47137cztM0_level2.fits | modeM0/AS1C09_003T01_9000006298_47137cztM0_level2_quad_clean.evt |
| Size (bytes) | 494,645,760 | 110,658,240 |
| Size | 471.7 MB | 105.5 MB |
| Events in quadrant A | 7,034,197 | 726,671 |
| Events in quadrant B | 3,547,028 | 753,149 |
| Events in quadrant C | 3,129,854 | 721,566 |
| Events in quadrant D | 4,061,907 | 666,506 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25492 | 2 |
| B | 0 | 15417 | 2 |
| C | 0 | 14554 | 2 |
| D | 0 | 17197 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6922 | 299 | 4.319561% |
| B | 6923 | 95 | 1.372237% |
| C | 6923 | 33 | 0.476672% |
| D | 6923 | 133 | 1.921132% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8747 | 6923 | 132 | 132 | 1.51% | 1.91% |  |
| B | 8748 | 6924 | 52 | 52 | 0.59% | 0.75% |  |
| C | 8748 | 6925 | 12 | 12 | 0.14% | 0.17% |  |
| D | 8748 | 6925 | 102 | 102 | 1.17% | 1.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3937707 | 25239.25 | 748 | 730 | 156.0 |
| A | 15 | 235 | 154707 | 987.12 | 748 | 730 | 156.0 |
| A | 0 | 243 | 18917 | 116.59 | 748 | 730 | 156.0 |
| B | 4 | 21 | 163145 | 1099.31 | 755 | 732 | 147.7 |
| B | 5 | 32 | 149067 | 1004.03 | 755 | 732 | 147.7 |
| B | 5 | 255 | 70847 | 474.58 | 755 | 732 | 147.7 |
| C | 14 | 254 | 116704 | 662.12 | 744 | 746 | 175.1 |
| C | 15 | 208 | 102934 | 583.49 | 744 | 746 | 175.1 |
| C | 3 | 233 | 7316 | 37.51 | 744 | 746 | 175.1 |
| D | 1 | 47 | 410382 | 2191.34 | 740 | 717 | 186.9 |
| D | 13 | 171 | 298351 | 1592.08 | 740 | 717 | 186.9 |
| D | 2 | 249 | 120799 | 642.33 | 740 | 717 | 186.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

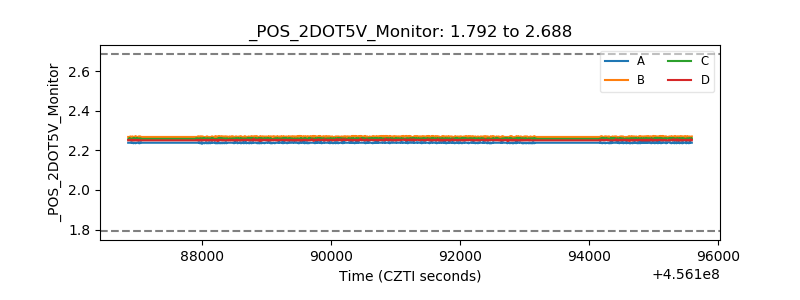

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
