| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006298_47139cztM0_level2.fits | modeM0/AS1C09_003T01_9000006298_47139cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,849,920 | 107,709,120 |
| Size | 442.4 MB | 102.7 MB |
| Events in quadrant A | 6,457,438 | 720,557 |
| Events in quadrant B | 3,542,217 | 732,677 |
| Events in quadrant C | 2,969,830 | 702,108 |
| Events in quadrant D | 3,686,841 | 644,230 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23451 | 2 |
| B | 0 | 15171 | 2 |
| C | 0 | 13977 | 2 |
| D | 0 | 16017 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6617 | 164 | 2.478465% |
| B | 6617 | 139 | 2.100650% |
| C | 6618 | 43 | 0.649743% |
| D | 6618 | 123 | 1.858568% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7732 | 6618 | 59 | 59 | 0.76% | 0.89% |  |
| B | 7732 | 6618 | 99 | 99 | 1.28% | 1.50% |  |
| C | 7733 | 6619 | 28 | 28 | 0.36% | 0.42% |  |
| D | 7733 | 6619 | 100 | 100 | 1.29% | 1.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3662095 | 25262.33 | 709 | 697 | 144.9 |
| A | 0 | 243 | 13273 | 86.77 | 709 | 697 | 144.9 |
| A | 13 | 254 | 11056 | 71.47 | 709 | 697 | 144.9 |
| B | 5 | 32 | 345806 | 2478.79 | 711 | 691 | 139.2 |
| B | 4 | 21 | 144072 | 1029.84 | 711 | 691 | 139.2 |
| B | 5 | 255 | 66358 | 471.65 | 711 | 691 | 139.2 |
| C | 14 | 254 | 228865 | 1381.86 | 699 | 701 | 165.1 |
| C | 15 | 208 | 11949 | 68.12 | 699 | 701 | 165.1 |
| C | 13 | 61 | 4612 | 23.69 | 699 | 701 | 165.1 |
| D | 1 | 47 | 288581 | 1673.75 | 689 | 668 | 172.0 |
| D | 13 | 171 | 213492 | 1237.23 | 689 | 668 | 172.0 |
| D | 5 | 171 | 111496 | 644.29 | 689 | 668 | 172.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

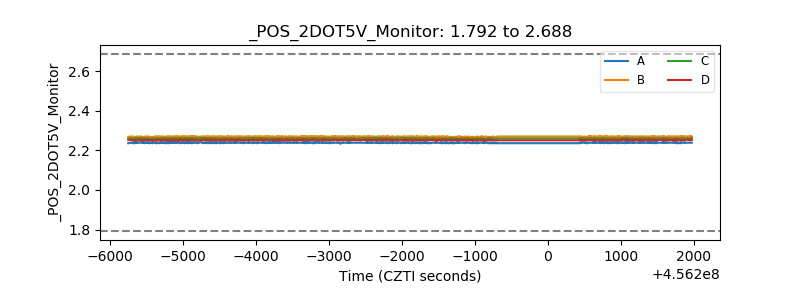

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
