| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006298_47143cztM0_level2.fits | modeM0/AS1C09_003T01_9000006298_47143cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,977,600 | 102,530,880 |
| Size | 436.8 MB | 97.8 MB |
| Events in quadrant A | 6,643,087 | 679,690 |
| Events in quadrant B | 2,990,509 | 710,421 |
| Events in quadrant C | 3,576,071 | 664,276 |
| Events in quadrant D | 3,254,766 | 610,674 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24349 | 2 |
| B | 0 | 13265 | 2 |
| C | 0 | 15279 | 2 |
| D | 0 | 14419 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6294 | 231 | 3.670162% |
| B | 6294 | 86 | 1.366381% |
| C | 6295 | 86 | 1.366164% |
| D | 6295 | 132 | 2.096902% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7344 | 6295 | 45 | 45 | 0.61% | 0.71% |  |
| B | 7344 | 6296 | 7 | 7 | 0.10% | 0.11% |  |
| C | 7345 | 6297 | 50 | 50 | 0.68% | 0.79% |  |
| D | 7345 | 6297 | 85 | 85 | 1.16% | 1.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3559193 | 24988.35 | 690 | 677 | 142.4 |
| A | 15 | 235 | 209360 | 1465.4 | 690 | 677 | 142.4 |
| A | 15 | 14 | 99313 | 692.63 | 690 | 677 | 142.4 |
| B | 4 | 171 | 56417 | 417.31 | 690 | 670 | 133.6 |
| B | 5 | 255 | 48956 | 361.46 | 690 | 670 | 133.6 |
| B | 0 | 200 | 40162 | 295.63 | 690 | 670 | 133.6 |
| C | 15 | 208 | 878902 | 5649.81 | 667 | 668 | 155.4 |
| C | 14 | 254 | 69575 | 443.29 | 667 | 668 | 155.4 |
| C | 6 | 247 | 9009 | 53.66 | 667 | 668 | 155.4 |
| D | 12 | 233 | 305016 | 1806.43 | 671 | 647 | 168.5 |
| D | 2 | 120 | 116725 | 688.92 | 671 | 647 | 168.5 |
| D | 1 | 47 | 96192 | 567.06 | 671 | 647 | 168.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

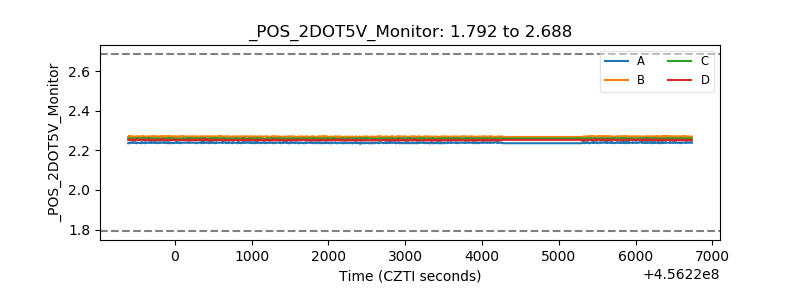

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
