| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006298_47147cztM0_level2.fits | modeM0/AS1C09_003T01_9000006298_47147cztM0_level2_quad_clean.evt |
| Size (bytes) | 558,480,960 | 125,251,200 |
| Size | 532.6 MB | 119.4 MB |
| Events in quadrant A | 7,754,122 | 842,276 |
| Events in quadrant B | 4,164,650 | 854,485 |
| Events in quadrant C | 3,875,124 | 798,037 |
| Events in quadrant D | 4,266,302 | 747,651 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28857 | 0 |
| B | 0 | 17671 | 0 |
| C | 0 | 17140 | 1 |
| D | 0 | 18383 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7910 | 156 | 1.972187% |
| B | 7910 | 79 | 0.998736% |
| C | 7910 | 88 | 1.112516% |
| D | 7910 | 106 | 1.340076% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7910 | 7910 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7910 | 7910 | 15 | 15 | 0.19% | 0.19% |  |
| C | 7910 | 7910 | 68 | 68 | 0.86% | 0.86% |  |
| D | 7910 | 7910 | 81 | 81 | 1.02% | 1.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4306914 | 23678.8 | 877 | 857 | 181.9 |
| A | 0 | 243 | 19392 | 101.92 | 877 | 857 | 181.9 |
| A | 13 | 254 | 12306 | 62.96 | 877 | 857 | 181.9 |
| B | 4 | 21 | 179351 | 1048.46 | 869 | 843 | 170.3 |
| B | 5 | 173 | 112195 | 654.02 | 869 | 843 | 170.3 |
| B | 0 | 190 | 94166 | 548.13 | 869 | 843 | 170.3 |
| C | 14 | 254 | 407331 | 2047.1 | 844 | 844 | 198.6 |
| C | 14 | 67 | 152434 | 763.42 | 844 | 844 | 198.6 |
| C | 15 | 208 | 20431 | 98.64 | 844 | 844 | 198.6 |
| D | 1 | 47 | 269966 | 1267.39 | 851 | 821 | 212.4 |
| D | 2 | 249 | 165428 | 775.13 | 851 | 821 | 212.4 |
| D | 8 | 48 | 109552 | 512.01 | 851 | 821 | 212.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

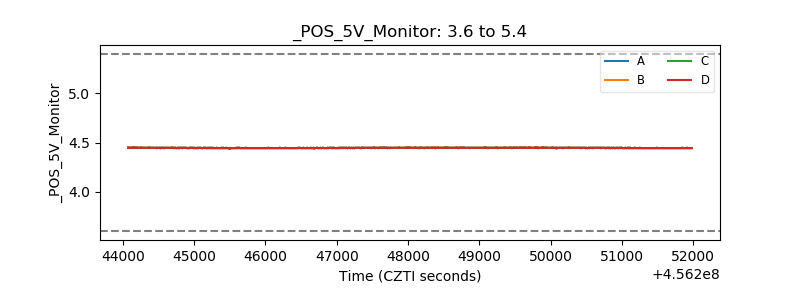

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
