| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006298_47156cztM0_level2.fits | modeM0/AS1C09_003T01_9000006298_47156cztM0_level2_quad_clean.evt |
| Size (bytes) | 415,929,600 | 107,032,320 |
| Size | 396.7 MB | 102.1 MB |
| Events in quadrant A | 6,302,791 | 719,170 |
| Events in quadrant B | 3,166,519 | 741,382 |
| Events in quadrant C | 2,714,867 | 697,547 |
| Events in quadrant D | 2,725,087 | 645,694 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22876 | 1 |
| B | 0 | 13675 | 1 |
| C | 0 | 12852 | 2 |
| D | 0 | 12987 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6269 | 136 | 2.169405% |
| B | 6270 | 76 | 1.212121% |
| C | 6269 | 12 | 0.191418% |
| D | 6269 | 9 | 0.143564% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7519 | 6270 | 21 | 21 | 0.28% | 0.33% |  |
| B | 7520 | 6271 | 26 | 26 | 0.35% | 0.41% |  |
| C | 7519 | 6270 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7519 | 6270 | 6 | 6 | 0.08% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3523415 | 24776.93 | 696 | 683 | 142.2 |
| A | 9 | 191 | 25125 | 171.91 | 696 | 683 | 142.2 |
| A | 15 | 235 | 19395 | 131.61 | 696 | 683 | 142.2 |
| B | 5 | 255 | 140841 | 1049.42 | 696 | 676 | 133.6 |
| B | 4 | 21 | 130114 | 969.11 | 696 | 676 | 133.6 |
| B | 0 | 200 | 60810 | 450.23 | 696 | 676 | 133.6 |
| C | 14 | 254 | 70700 | 444.98 | 674 | 677 | 157.4 |
| C | 3 | 233 | 9381 | 55.31 | 674 | 677 | 157.4 |
| C | 13 | 61 | 4647 | 25.23 | 674 | 677 | 157.4 |
| D | 2 | 234 | 32021 | 187.58 | 673 | 652 | 167.2 |
| D | 8 | 176 | 27926 | 163.09 | 673 | 652 | 167.2 |
| D | 2 | 249 | 19851 | 114.81 | 673 | 652 | 167.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

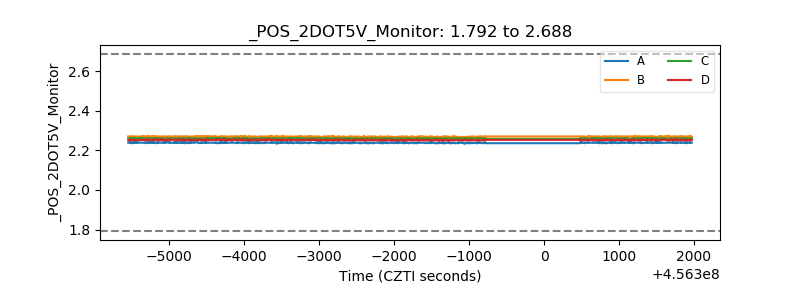

| +2.5 Volts monitor |  |

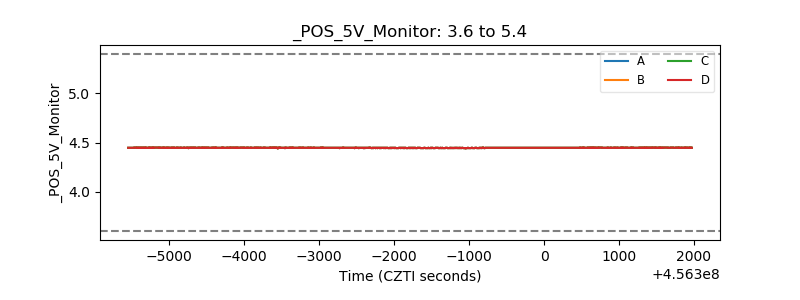

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
