| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006298_47158cztM0_level2.fits | modeM0/AS1C09_003T01_9000006298_47158cztM0_level2_quad_clean.evt |
| Size (bytes) | 425,689,920 | 100,584,000 |
| Size | 406.0 MB | 95.9 MB |
| Events in quadrant A | 6,128,195 | 669,136 |
| Events in quadrant B | 3,069,385 | 688,595 |
| Events in quadrant C | 2,733,284 | 652,667 |
| Events in quadrant D | 3,342,571 | 600,263 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22727 | 1 |
| B | 0 | 13520 | 1 |
| C | 0 | 12897 | 1 |
| D | 0 | 14636 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6231 | 193 | 3.097416% |
| B | 6232 | 121 | 1.941592% |
| C | 6232 | 25 | 0.401155% |
| D | 6232 | 130 | 2.086008% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7196 | 6232 | 23 | 23 | 0.32% | 0.37% |  |
| B | 7197 | 6233 | 50 | 50 | 0.69% | 0.80% |  |
| C | 7197 | 6233 | 14 | 14 | 0.19% | 0.22% |  |
| D | 7197 | 6233 | 101 | 101 | 1.40% | 1.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3400168 | 24279.42 | 678 | 666 | 140.0 |
| A | 0 | 243 | 33954 | 237.74 | 678 | 666 | 140.0 |
| A | 9 | 191 | 32379 | 226.5 | 678 | 666 | 140.0 |
| B | 4 | 171 | 158973 | 1212.17 | 676 | 654 | 130.6 |
| B | 5 | 32 | 64122 | 485.94 | 676 | 654 | 130.6 |
| B | 4 | 21 | 58029 | 439.29 | 676 | 654 | 130.6 |
| C | 14 | 254 | 118978 | 765.88 | 658 | 660 | 154.5 |
| C | 15 | 208 | 26786 | 169.12 | 658 | 660 | 154.5 |
| C | 3 | 233 | 15061 | 93.22 | 658 | 660 | 154.5 |
| D | 1 | 47 | 506876 | 3068.67 | 660 | 639 | 165.0 |
| D | 7 | 96 | 104497 | 629.56 | 660 | 639 | 165.0 |
| D | 5 | 32 | 43115 | 257.48 | 660 | 639 | 165.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

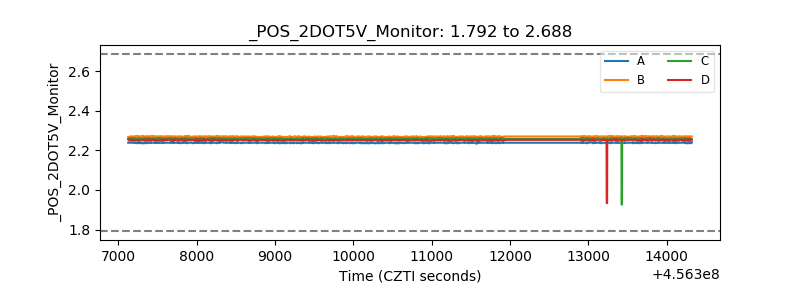

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
