| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006298_47162cztM0_level2.fits | modeM0/AS1C09_003T01_9000006298_47162cztM0_level2_quad_clean.evt |
| Size (bytes) | 568,056,960 | 113,736,960 |
| Size | 541.7 MB | 108.5 MB |
| Events in quadrant A | 7,604,039 | 754,470 |
| Events in quadrant B | 3,625,398 | 786,018 |
| Events in quadrant C | 3,264,511 | 744,201 |
| Events in quadrant D | 5,965,779 | 649,023 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27943 | 0 |
| B | 0 | 15759 | 0 |
| C | 0 | 15271 | 1 |
| D | 0 | 22988 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7324 | 400 | 5.461496% |
| B | 7324 | 152 | 2.075369% |
| C | 7324 | 74 | 1.010377% |
| D | 7324 | 721 | 9.844347% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7324 | 7324 | 119 | 119 | 1.62% | 1.62% |  |
| B | 7324 | 7324 | 16 | 16 | 0.22% | 0.22% |  |
| C | 7324 | 7324 | 21 | 21 | 0.29% | 0.29% |  |
| D | 7323 | 7323 | 597 | 597 | 8.15% | 8.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3984867 | 23535.92 | 813 | 793 | 169.3 |
| A | 14 | 235 | 386986 | 2281.44 | 813 | 793 | 169.3 |
| A | 9 | 191 | 27896 | 160.11 | 813 | 793 | 169.3 |
| B | 0 | 183 | 67098 | 411.48 | 813 | 788 | 161.1 |
| B | 0 | 190 | 57383 | 351.2 | 813 | 788 | 161.1 |
| B | 0 | 200 | 55740 | 341.0 | 813 | 788 | 161.1 |
| C | 14 | 254 | 88546 | 467.66 | 796 | 799 | 187.6 |
| C | 15 | 208 | 37460 | 195.39 | 796 | 799 | 187.6 |
| C | 3 | 233 | 14545 | 73.26 | 796 | 799 | 187.6 |
| D | 12 | 1 | 1750504 | 9005.51 | 776 | 750 | 194.3 |
| D | 1 | 47 | 359487 | 1846.32 | 776 | 750 | 194.3 |
| D | 12 | 218 | 210430 | 1079.16 | 776 | 750 | 194.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

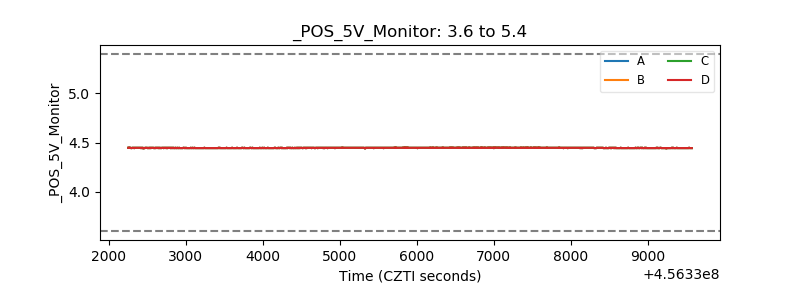

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
