| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006298_47173cztM0_level2.fits | modeM0/AS1C09_003T01_9000006298_47173cztM0_level2_quad_clean.evt |
| Size (bytes) | 419,572,800 | 97,032,960 |
| Size | 400.1 MB | 92.5 MB |
| Events in quadrant A | 5,944,079 | 640,075 |
| Events in quadrant B | 3,021,398 | 666,545 |
| Events in quadrant C | 2,763,596 | 625,664 |
| Events in quadrant D | 3,325,142 | 576,785 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21937 | 1 |
| B | 0 | 13294 | 1 |
| C | 0 | 12898 | 1 |
| D | 0 | 14236 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6137 | 258 | 4.204008% |
| B | 6137 | 147 | 2.395307% |
| C | 6138 | 107 | 1.743239% |
| D | 6138 | 187 | 3.046595% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6862 | 6137 | 2 | 2 | 0.03% | 0.03% |  |
| B | 6862 | 6137 | 20 | 20 | 0.29% | 0.33% |  |
| C | 6863 | 6138 | 10 | 10 | 0.15% | 0.16% |  |
| D | 6863 | 6138 | 75 | 75 | 1.09% | 1.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3316313 | 23724.66 | 672 | 657 | 139.8 |
| A | 9 | 191 | 12418 | 84.15 | 672 | 657 | 139.8 |
| A | 13 | 254 | 11805 | 79.77 | 672 | 657 | 139.8 |
| B | 4 | 21 | 118777 | 888.7 | 673 | 652 | 132.9 |
| B | 0 | 200 | 104953 | 784.7 | 673 | 652 | 132.9 |
| B | 5 | 172 | 45894 | 340.37 | 673 | 652 | 132.9 |
| C | 14 | 254 | 121763 | 793.66 | 652 | 656 | 152.6 |
| C | 15 | 208 | 74292 | 482.56 | 652 | 656 | 152.6 |
| C | 3 | 233 | 10033 | 61.45 | 652 | 656 | 152.6 |
| D | 12 | 233 | 241462 | 1463.31 | 659 | 636 | 164.6 |
| D | 1 | 47 | 230798 | 1398.51 | 659 | 636 | 164.6 |
| D | 6 | 112 | 84424 | 509.11 | 659 | 636 | 164.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

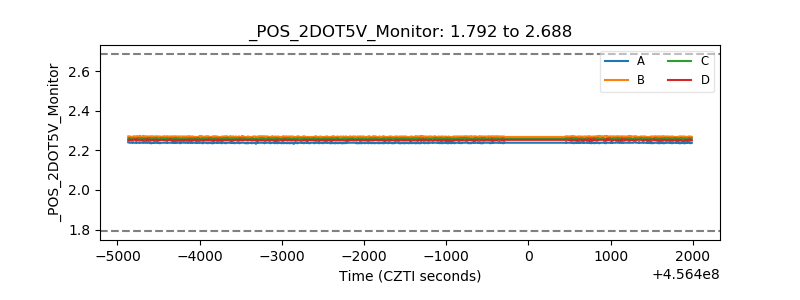

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
