| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_019T01_9000006302_47204cztM0_level2.fits | modeM0/AS1A13_019T01_9000006302_47204cztM0_level2_quad_clean.evt |
| Size (bytes) | 723,110,400 | 105,382,080 |
| Size | 689.6 MB | 100.5 MB |
| Events in quadrant A | 14,087,491 | 437,117 |
| Events in quadrant B | 4,903,479 | 763,009 |
| Events in quadrant C | 3,559,255 | 770,874 |
| Events in quadrant D | 3,645,994 | 707,170 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46916 | 0 |
| B | 0 | 19507 | 0 |
| C | 0 | 15911 | 0 |
| D | 0 | 16040 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7356 | 3888 | 52.854812% |
| B | 7357 | 503 | 6.837026% |
| C | 7357 | 43 | 0.584477% |
| D | 7357 | 28 | 0.380590% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7355 | 7355 | 3302 | 3302 | 44.89% | 44.89% |  |
| B | 7357 | 7357 | 424 | 424 | 5.76% | 5.76% |  |
| C | 7357 | 7357 | 39 | 39 | 0.53% | 0.53% |  |
| D | 7357 | 7357 | 28 | 28 | 0.38% | 0.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 191 | 7972237 | 54710.92 | 698 | 682 | 145.7 |
| A | 10 | 83 | 3365129 | 23091.1 | 698 | 682 | 145.7 |
| A | 14 | 235 | 22032 | 146.53 | 698 | 682 | 145.7 |
| B | 15 | 201 | 1160104 | 7213.18 | 803 | 778 | 160.7 |
| B | 0 | 183 | 136363 | 843.59 | 803 | 778 | 160.7 |
| B | 0 | 200 | 134029 | 829.07 | 803 | 778 | 160.7 |
| C | 15 | 208 | 220985 | 1128.32 | 816 | 818 | 195.1 |
| C | 14 | 254 | 117806 | 599.54 | 816 | 818 | 195.1 |
| C | 14 | 67 | 22246 | 109.81 | 816 | 818 | 195.1 |
| D | 13 | 171 | 137807 | 656.05 | 820 | 793 | 208.8 |
| D | 2 | 249 | 85707 | 406.59 | 820 | 793 | 208.8 |
| D | 5 | 171 | 60219 | 284.54 | 820 | 793 | 208.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

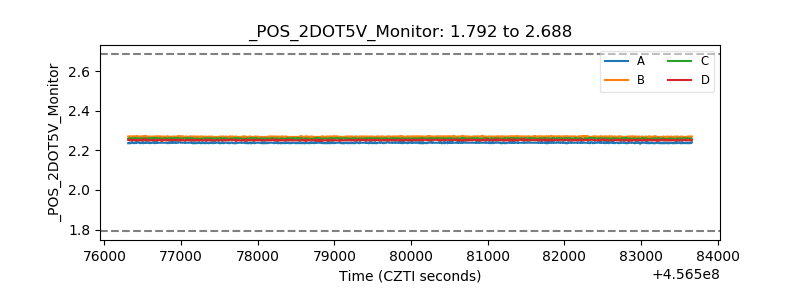

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
