| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_005T01_9000006304_47229cztM0_level2.fits | modeM0/AS1C09_005T01_9000006304_47229cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,341,760 | 112,893,120 |
| Size | 461.0 MB | 107.7 MB |
| Events in quadrant A | 7,866,775 | 719,239 |
| Events in quadrant B | 3,600,556 | 785,134 |
| Events in quadrant C | 2,976,091 | 764,483 |
| Events in quadrant D | 2,946,070 | 698,088 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28035 | 2 |
| B | 0 | 15004 | 2 |
| C | 0 | 13322 | 2 |
| D | 0 | 13439 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6473 | 551 | 8.512282% |
| B | 6473 | 132 | 2.039240% |
| C | 6473 | 34 | 0.525259% |
| D | 6473 | 30 | 0.463464% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7708 | 6474 | 363 | 363 | 4.71% | 5.61% |  |
| B | 7707 | 6472 | 40 | 40 | 0.52% | 0.62% |  |
| C | 7708 | 6473 | 8 | 8 | 0.10% | 0.12% |  |
| D | 7707 | 6472 | 12 | 12 | 0.16% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3543506 | 23874.29 | 725 | 709 | 148.4 |
| A | 9 | 191 | 1511753 | 10182.66 | 725 | 709 | 148.4 |
| A | 13 | 254 | 10521 | 66.12 | 725 | 709 | 148.4 |
| B | 5 | 32 | 192917 | 1337.17 | 743 | 720 | 143.7 |
| B | 0 | 190 | 166654 | 1154.45 | 743 | 720 | 143.7 |
| B | 15 | 201 | 139086 | 962.65 | 743 | 720 | 143.7 |
| C | 14 | 254 | 46082 | 259.62 | 748 | 751 | 174.6 |
| C | 14 | 67 | 6090 | 30.58 | 748 | 751 | 174.6 |
| C | 13 | 61 | 4962 | 24.12 | 748 | 751 | 174.6 |
| D | 1 | 47 | 29092 | 156.55 | 741 | 719 | 181.2 |
| D | 2 | 234 | 27429 | 147.38 | 741 | 719 | 181.2 |
| D | 12 | 238 | 25847 | 138.65 | 741 | 719 | 181.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

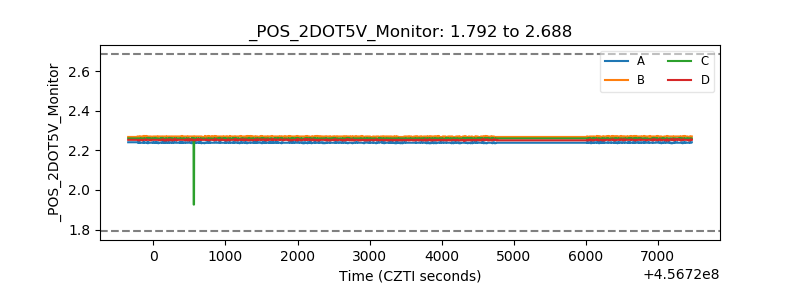

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
