| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_005T01_9000006304_47230cztM0_level2.fits | modeM0/AS1C09_005T01_9000006304_47230cztM0_level2_quad_clean.evt |
| Size (bytes) | 517,219,200 | 108,535,680 |
| Size | 493.3 MB | 103.5 MB |
| Events in quadrant A | 7,956,408 | 700,282 |
| Events in quadrant B | 4,263,595 | 723,897 |
| Events in quadrant C | 2,962,707 | 739,581 |
| Events in quadrant D | 3,458,145 | 668,572 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28366 | 2 |
| B | 0 | 17058 | 2 |
| C | 0 | 13483 | 2 |
| D | 0 | 14869 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6510 | 545 | 8.371736% |
| B | 6510 | 469 | 7.204301% |
| C | 6510 | 55 | 0.844854% |
| D | 6510 | 114 | 1.751152% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7600 | 6511 | 328 | 328 | 4.32% | 5.04% |  |
| B | 7599 | 6509 | 339 | 339 | 4.46% | 5.21% |  |
| C | 7599 | 6509 | 12 | 12 | 0.16% | 0.18% |  |
| D | 7599 | 6509 | 67 | 67 | 0.88% | 1.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3587123 | 23946.26 | 719 | 702 | 149.8 |
| A | 9 | 191 | 1568719 | 10469.53 | 719 | 702 | 149.8 |
| A | 7 | 3 | 13816 | 87.56 | 719 | 702 | 149.8 |
| B | 15 | 201 | 810054 | 5860.19 | 714 | 692 | 138.1 |
| B | 5 | 32 | 297084 | 2146.03 | 714 | 692 | 138.1 |
| B | 0 | 190 | 115076 | 828.2 | 714 | 692 | 138.1 |
| C | 14 | 254 | 72116 | 411.55 | 739 | 741 | 173.4 |
| C | 13 | 61 | 4968 | 24.37 | 739 | 741 | 173.4 |
| C | 1 | 3 | 4778 | 23.28 | 739 | 741 | 173.4 |
| D | 10 | 181 | 314501 | 1721.92 | 733 | 710 | 182.2 |
| D | 2 | 249 | 260246 | 1424.2 | 733 | 710 | 182.2 |
| D | 2 | 234 | 28802 | 154.15 | 733 | 710 | 182.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

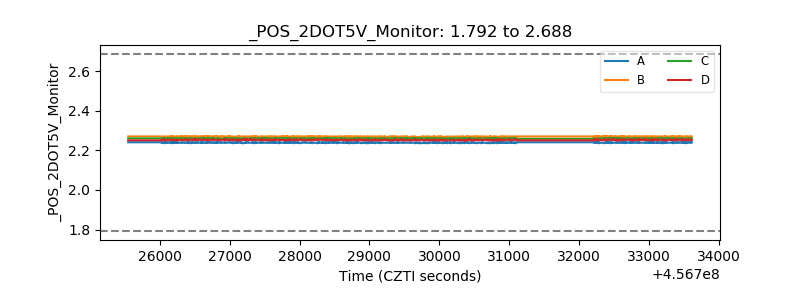

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
