| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_005T01_9000006304_47233cztM0_level2.fits | modeM0/AS1C09_005T01_9000006304_47233cztM0_level2_quad_clean.evt |
| Size (bytes) | 528,773,760 | 122,987,520 |
| Size | 504.3 MB | 117.3 MB |
| Events in quadrant A | 8,024,911 | 806,382 |
| Events in quadrant B | 3,788,268 | 834,269 |
| Events in quadrant C | 3,313,660 | 812,222 |
| Events in quadrant D | 3,852,009 | 737,911 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29160 | 0 |
| B | 0 | 16624 | 0 |
| C | 0 | 15693 | 0 |
| D | 0 | 17041 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7669 | 246 | 3.207719% |
| B | 7669 | 53 | 0.691094% |
| C | 7669 | 18 | 0.234711% |
| D | 7669 | 96 | 1.251793% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7669 | 7669 | 88 | 88 | 1.15% | 1.15% |  |
| B | 7669 | 7669 | 7 | 7 | 0.09% | 0.09% |  |
| C | 7669 | 7669 | 5 | 5 | 0.07% | 0.07% |  |
| D | 7669 | 7669 | 91 | 91 | 1.19% | 1.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3730109 | 21321.65 | 839 | 817 | 174.9 |
| A | 9 | 191 | 973144 | 5559.13 | 839 | 817 | 174.9 |
| A | 15 | 235 | 42402 | 237.76 | 839 | 817 | 174.9 |
| B | 15 | 201 | 183270 | 1100.83 | 838 | 811 | 165.7 |
| B | 0 | 190 | 120321 | 721.04 | 838 | 811 | 165.7 |
| B | 0 | 197 | 60097 | 357.69 | 838 | 811 | 165.7 |
| C | 14 | 254 | 30996 | 154.3 | 835 | 837 | 195.5 |
| C | 3 | 233 | 12499 | 59.67 | 835 | 837 | 195.5 |
| C | 13 | 61 | 5644 | 24.59 | 835 | 837 | 195.5 |
| D | 12 | 1 | 120775 | 568.9 | 835 | 807 | 210.9 |
| D | 7 | 38 | 83834 | 393.72 | 835 | 807 | 210.9 |
| D | 5 | 32 | 78515 | 368.5 | 835 | 807 | 210.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

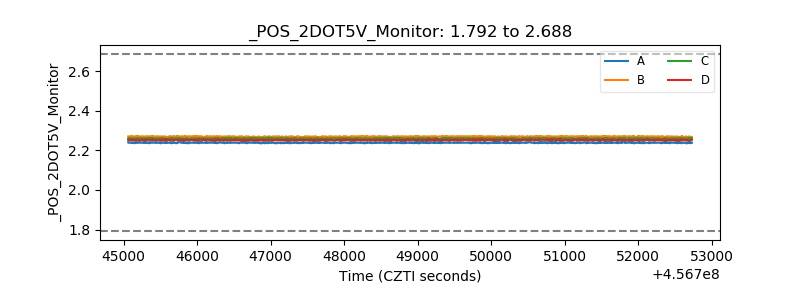

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
