| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_005T01_9000006304_47242cztM0_level2.fits | modeM0/AS1C09_005T01_9000006304_47242cztM0_level2_quad_clean.evt |
| Size (bytes) | 555,503,040 | 114,549,120 |
| Size | 529.8 MB | 109.2 MB |
| Events in quadrant A | 7,812,505 | 743,196 |
| Events in quadrant B | 3,579,625 | 808,622 |
| Events in quadrant C | 4,901,547 | 746,063 |
| Events in quadrant D | 3,753,100 | 705,915 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27831 | 2 |
| B | 0 | 15068 | 2 |
| C | 0 | 19043 | 2 |
| D | 0 | 15964 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6664 | 537 | 8.058223% |
| B | 6664 | 77 | 1.155462% |
| C | 6664 | 369 | 5.537215% |
| D | 6664 | 93 | 1.395558% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9074 | 6666 | 360 | 360 | 3.97% | 5.40% |  |
| B | 9074 | 6666 | 22 | 22 | 0.24% | 0.33% |  |
| C | 9074 | 6666 | 308 | 308 | 3.39% | 4.62% |  |
| D | 9074 | 6666 | 66 | 66 | 0.73% | 0.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3603682 | 23461.27 | 745 | 731 | 153.6 |
| A | 9 | 191 | 1322890 | 8609.48 | 745 | 731 | 153.6 |
| A | 13 | 254 | 11183 | 68.06 | 745 | 731 | 153.6 |
| B | 0 | 190 | 305151 | 2086.16 | 766 | 743 | 145.9 |
| B | 0 | 200 | 76963 | 522.35 | 766 | 743 | 145.9 |
| B | 0 | 198 | 45186 | 304.58 | 766 | 743 | 145.9 |
| C | 10 | 9 | 1890141 | 10906.16 | 748 | 754 | 173.2 |
| C | 14 | 254 | 37916 | 214.51 | 748 | 754 | 173.2 |
| C | 0 | 207 | 35934 | 203.07 | 748 | 754 | 173.2 |
| D | 1 | 47 | 301028 | 1596.38 | 752 | 729 | 188.1 |
| D | 2 | 37 | 289242 | 1533.72 | 752 | 729 | 188.1 |
| D | 12 | 1 | 99531 | 525.23 | 752 | 729 | 188.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

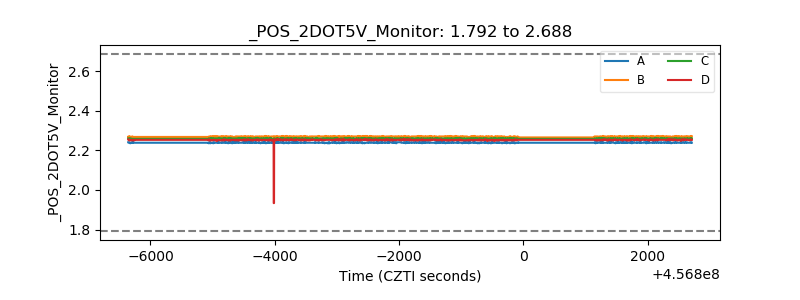

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
