| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_005T01_9000006304_47245cztM0_level2.fits | modeM0/AS1C09_005T01_9000006304_47245cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,166,572,160 | 472,446,720 |
| Size | 2.0 GB | 450.6 MB |
| Events in quadrant A | 30,947,083 | 3,101,887 |
| Events in quadrant B | 14,738,142 | 3,285,761 |
| Events in quadrant C | 14,032,169 | 3,150,883 |
| Events in quadrant D | 18,282,521 | 2,805,983 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 584 | 4 |
| B | 0 | 582 | 2 |
| C | 0 | 582 | 2 |
| D | 0 | 582 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112799 | 942 |
| B | 0 | 63638 | 515 |
| C | 0 | 63020 | 674 |
| D | 0 | 75381 | 665 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 60 | 2 |
| B | 0 | 61 | 3 |
| C | 0 | 59 | 1 |
| D | 0 | 59 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 28504 | 1469 | 5.153663% |
| B | 28520 | 393 | 1.377980% |
| C | 28531 | 422 | 1.479093% |
| D | 28516 | 1333 | 4.674569% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 38103 | 28557 | 683 | 683 | 1.79% | 2.39% |  |
| B | 38103 | 28557 | 104 | 104 | 0.27% | 0.36% |  |
| C | 38104 | 28565 | 244 | 244 | 0.64% | 0.85% |  |
| D | 38103 | 28562 | 1181 | 1181 | 3.10% | 4.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 14583886 | 22861.88 | 3128 | 3059 | 637.8 |
| A | 9 | 191 | 4193568 | 6570.47 | 3128 | 3059 | 637.8 |
| A | 13 | 254 | 45705 | 66.87 | 3128 | 3059 | 637.8 |
| B | 0 | 200 | 827687 | 1366.53 | 3164 | 3061 | 603.4 |
| B | 0 | 190 | 601983 | 992.5 | 3164 | 3061 | 603.4 |
| B | 5 | 32 | 244822 | 400.63 | 3164 | 3061 | 603.4 |
| C | 10 | 9 | 1497950 | 2048.08 | 3161 | 3175 | 729.8 |
| C | 14 | 254 | 106015 | 140.91 | 3161 | 3175 | 729.8 |
| C | 0 | 207 | 44233 | 56.26 | 3161 | 3175 | 729.8 |
| D | 2 | 37 | 2358203 | 3065.06 | 3105 | 3017 | 768.4 |
| D | 1 | 47 | 1882271 | 2445.68 | 3105 | 3017 | 768.4 |
| D | 12 | 1 | 1201213 | 1559.34 | 3105 | 3017 | 768.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

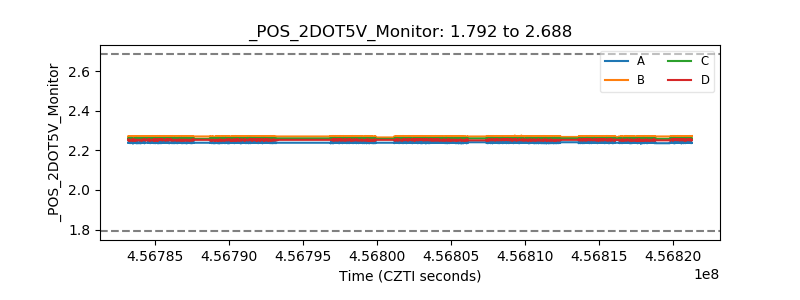

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
