| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_005T01_9000006304_47249cztM0_level2.fits | modeM0/AS1C09_005T01_9000006304_47249cztM0_level2_quad_clean.evt |
| Size (bytes) | 512,579,520 | 109,987,200 |
| Size | 488.8 MB | 104.9 MB |
| Events in quadrant A | 7,338,270 | 712,513 |
| Events in quadrant B | 3,400,411 | 742,058 |
| Events in quadrant C | 3,058,964 | 734,969 |
| Events in quadrant D | 4,638,087 | 657,311 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27106 | 0 |
| B | 0 | 14851 | 0 |
| C | 0 | 14371 | 0 |
| D | 0 | 18639 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6937 | 336 | 4.843592% |
| B | 6937 | 215 | 3.099322% |
| C | 6938 | 55 | 0.792736% |
| D | 6938 | 352 | 5.073508% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6937 | 6937 | 10 | 10 | 0.14% | 0.14% |  |
| B | 6937 | 6937 | 16 | 16 | 0.23% | 0.23% |  |
| C | 6938 | 6938 | 4 | 4 | 0.06% | 0.06% |  |
| D | 6938 | 6938 | 281 | 281 | 4.05% | 4.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3536250 | 21836.08 | 775 | 757 | 161.9 |
| A | 9 | 191 | 770647 | 4755.03 | 775 | 757 | 161.9 |
| A | 14 | 248 | 25671 | 153.87 | 775 | 757 | 161.9 |
| B | 0 | 200 | 77087 | 503.19 | 774 | 750 | 151.7 |
| B | 5 | 32 | 63380 | 412.84 | 774 | 750 | 151.7 |
| B | 0 | 198 | 55918 | 363.65 | 774 | 750 | 151.7 |
| C | 14 | 254 | 22906 | 121.74 | 772 | 774 | 181.8 |
| C | 0 | 207 | 17653 | 92.84 | 772 | 774 | 181.8 |
| C | 3 | 233 | 8566 | 42.86 | 772 | 774 | 181.8 |
| D | 12 | 1 | 651985 | 3409.1 | 764 | 738 | 191.0 |
| D | 1 | 47 | 531353 | 2777.62 | 764 | 738 | 191.0 |
| D | 12 | 2 | 179424 | 935.37 | 764 | 738 | 191.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

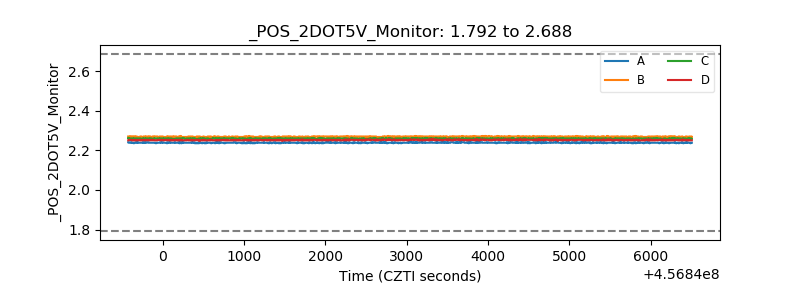

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
