| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_005T01_9000006304_47251cztM0_level2.fits | modeM0/AS1C09_005T01_9000006304_47251cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,052,694,720 | 198,518,400 |
| Size | 1003.9 MB | 189.3 MB |
| Events in quadrant A | 15,374,343 | 1,282,571 |
| Events in quadrant B | 6,556,870 | 1,355,049 |
| Events in quadrant C | 5,642,874 | 1,339,447 |
| Events in quadrant D | 10,401,640 | 1,145,883 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 260 | 0 |
| B | 0 | 260 | 0 |
| C | 0 | 260 | 0 |
| D | 0 | 260 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 54808 | 5 |
| B | 0 | 28487 | 2 |
| C | 0 | 26466 | 2 |
| D | 0 | 39719 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12838 | 1125 | 8.763047% |
| B | 12839 | 297 | 2.313264% |
| C | 12839 | 84 | 0.654257% |
| D | 12839 | 1049 | 8.170418% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13813 | 12840 | 570 | 570 | 4.13% | 4.44% |  |
| B | 13814 | 12841 | 80 | 80 | 0.58% | 0.62% |  |
| C | 13814 | 12841 | 24 | 24 | 0.17% | 0.19% |  |
| D | 13814 | 12841 | 894 | 894 | 6.47% | 6.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 6860809 | 24026.21 | 1387 | 1356 | 285.5 |
| A | 9 | 191 | 3072576 | 10757.38 | 1387 | 1356 | 285.5 |
| A | 13 | 248 | 41176 | 139.48 | 1387 | 1356 | 285.5 |
| B | 0 | 200 | 410412 | 1495.19 | 1401 | 1356 | 273.6 |
| B | 0 | 190 | 118856 | 429.49 | 1401 | 1356 | 273.6 |
| B | 5 | 32 | 105499 | 380.67 | 1401 | 1356 | 273.6 |
| C | 14 | 254 | 150711 | 456.48 | 1391 | 1396 | 327.1 |
| C | 12 | 250 | 33380 | 97.78 | 1391 | 1396 | 327.1 |
| C | 0 | 207 | 19603 | 55.66 | 1391 | 1396 | 327.1 |
| D | 12 | 1 | 3969878 | 11705.33 | 1347 | 1302 | 339.0 |
| D | 1 | 47 | 376317 | 1106.11 | 1347 | 1302 | 339.0 |
| D | 12 | 233 | 184944 | 541.65 | 1347 | 1302 | 339.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

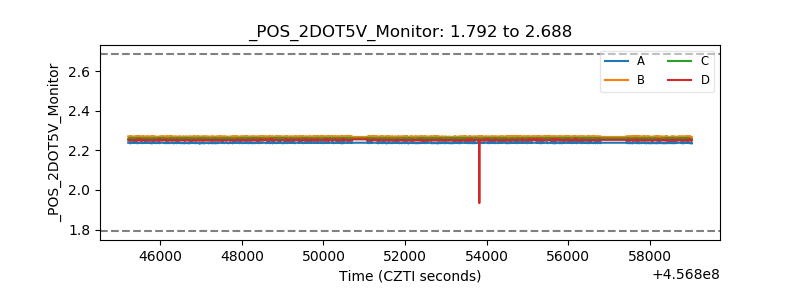

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
