| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_005T01_9000006304_47252cztM0_level2.fits | modeM0/AS1C09_005T01_9000006304_47252cztM0_level2_quad_clean.evt |
| Size (bytes) | 599,693,760 | 105,459,840 |
| Size | 571.9 MB | 100.6 MB |
| Events in quadrant A | 8,445,978 | 670,067 |
| Events in quadrant B | 3,559,433 | 738,267 |
| Events in quadrant C | 3,257,352 | 709,947 |
| Events in quadrant D | 6,405,723 | 597,328 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29863 | 2 |
| B | 0 | 15235 | 2 |
| C | 0 | 14783 | 2 |
| D | 0 | 23850 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6845 | 797 | 11.643535% |
| B | 6845 | 99 | 1.446311% |
| C | 6846 | 103 | 1.504528% |
| D | 6846 | 914 | 13.350862% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7675 | 6846 | 433 | 433 | 5.64% | 6.32% |  |
| B | 7675 | 6846 | 37 | 37 | 0.48% | 0.54% |  |
| C | 7676 | 6847 | 103 | 103 | 1.34% | 1.50% |  |
| D | 7676 | 6847 | 742 | 742 | 9.67% | 10.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3908348 | 25501.12 | 733 | 717 | 153.2 |
| A | 9 | 191 | 1655400 | 10798.43 | 733 | 717 | 153.2 |
| A | 13 | 248 | 19138 | 120.22 | 733 | 717 | 153.2 |
| B | 0 | 200 | 358417 | 2396.07 | 751 | 726 | 149.3 |
| B | 0 | 197 | 44219 | 291.35 | 751 | 726 | 149.3 |
| B | 5 | 32 | 42015 | 276.58 | 751 | 726 | 149.3 |
| C | 14 | 254 | 376166 | 2166.11 | 733 | 733 | 173.3 |
| C | 8 | 111 | 16579 | 91.42 | 733 | 733 | 173.3 |
| C | 13 | 61 | 4920 | 24.15 | 733 | 733 | 173.3 |
| D | 12 | 1 | 2727248 | 15659.48 | 691 | 668 | 174.1 |
| D | 12 | 218 | 391702 | 2245.81 | 691 | 668 | 174.1 |
| D | 12 | 233 | 156181 | 893.15 | 691 | 668 | 174.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

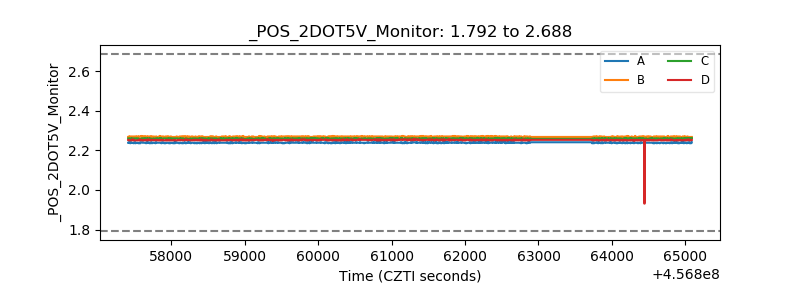

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
