| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_005T01_9000006304_47253cztM0_level2.fits | modeM0/AS1C09_005T01_9000006304_47253cztM0_level2_quad_clean.evt |
| Size (bytes) | 542,998,080 | 101,018,880 |
| Size | 517.8 MB | 96.3 MB |
| Events in quadrant A | 7,683,559 | 658,576 |
| Events in quadrant B | 3,214,057 | 708,227 |
| Events in quadrant C | 2,761,884 | 679,187 |
| Events in quadrant D | 5,941,998 | 563,382 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27255 | 1 |
| B | 0 | 13931 | 1 |
| C | 0 | 13107 | 7 |
| D | 0 | 22095 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6431 | 560 | 8.707821% |
| B | 6432 | 63 | 0.979478% |
| C | 6431 | 22 | 0.342093% |
| D | 6431 | 835 | 12.983984% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7411 | 6432 | 371 | 371 | 5.01% | 5.77% |  |
| B | 7412 | 6433 | 20 | 20 | 0.27% | 0.31% |  |
| C | 7411 | 6432 | 12 | 12 | 0.16% | 0.19% |  |
| D | 7411 | 6432 | 720 | 720 | 9.72% | 11.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3507281 | 24312.31 | 690 | 675 | 144.2 |
| A | 9 | 191 | 1393907 | 9659.68 | 690 | 675 | 144.2 |
| A | 7 | 3 | 67703 | 464.72 | 690 | 675 | 144.2 |
| B | 0 | 200 | 225629 | 1627.5 | 703 | 680 | 138.2 |
| B | 0 | 183 | 66888 | 479.01 | 703 | 680 | 138.2 |
| B | 0 | 197 | 40637 | 289.09 | 703 | 680 | 138.2 |
| C | 14 | 254 | 61044 | 367.68 | 691 | 693 | 164.1 |
| C | 13 | 61 | 4652 | 24.12 | 691 | 693 | 164.1 |
| C | 8 | 111 | 3597 | 17.69 | 691 | 693 | 164.1 |
| D | 12 | 1 | 3076037 | 18990.98 | 644 | 624 | 161.9 |
| D | 12 | 233 | 126424 | 776.83 | 644 | 624 | 161.9 |
| D | 5 | 171 | 102746 | 630.61 | 644 | 624 | 161.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

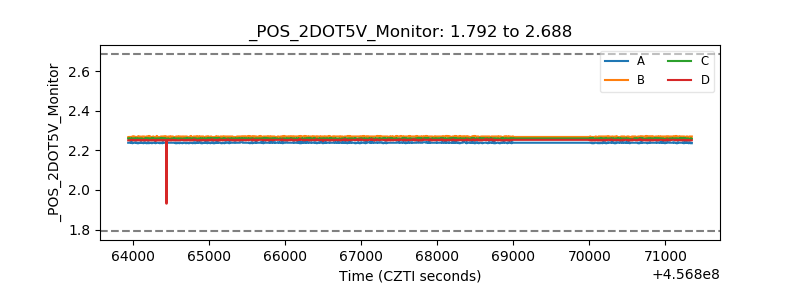

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
