| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_005T01_9000006304_47258cztM0_level2.fits | modeM0/AS1C09_005T01_9000006304_47258cztM0_level2_quad_clean.evt |
| Size (bytes) | 280,460,160 | 69,508,800 |
| Size | 267.5 MB | 66.3 MB |
| Events in quadrant A | 4,258,976 | 460,921 |
| Events in quadrant B | 2,054,810 | 477,686 |
| Events in quadrant C | 1,752,256 | 460,441 |
| Events in quadrant D | 2,002,316 | 422,371 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 80 | 0 |
| B | 0 | 80 | 0 |
| C | 0 | 80 | 0 |
| D | 0 | 80 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15500 | 0 |
| B | 0 | 8835 | 0 |
| C | 0 | 8123 | 0 |
| D | 0 | 8772 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4021 | 70 | 1.740860% |
| B | 4021 | 40 | 0.994777% |
| C | 4022 | 3 | 0.074590% |
| D | 4022 | 8 | 0.198906% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4021 | 4021 | 39 | 39 | 0.97% | 0.97% |  |
| B | 4021 | 4021 | 25 | 25 | 0.62% | 0.62% |  |
| C | 4022 | 4022 | 2 | 2 | 0.05% | 0.05% |  |
| D | 4022 | 4022 | 7 | 7 | 0.17% | 0.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2072721 | 22843.82 | 437 | 428 | 90.7 |
| A | 9 | 191 | 484241 | 5333.29 | 437 | 428 | 90.7 |
| A | 13 | 254 | 6311 | 64.85 | 437 | 428 | 90.7 |
| B | 0 | 200 | 172177 | 2041.44 | 438 | 425 | 84.1 |
| B | 5 | 255 | 45788 | 539.18 | 438 | 425 | 84.1 |
| B | 5 | 172 | 43030 | 506.4 | 438 | 425 | 84.1 |
| C | 12 | 250 | 21402 | 201.75 | 442 | 444 | 103.9 |
| C | 1 | 3 | 4190 | 36.06 | 442 | 444 | 103.9 |
| C | 3 | 233 | 3570 | 30.09 | 442 | 444 | 103.9 |
| D | 1 | 47 | 168434 | 1533.04 | 439 | 426 | 109.6 |
| D | 12 | 1 | 117448 | 1067.8 | 439 | 426 | 109.6 |
| D | 2 | 234 | 16257 | 144.45 | 439 | 426 | 109.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

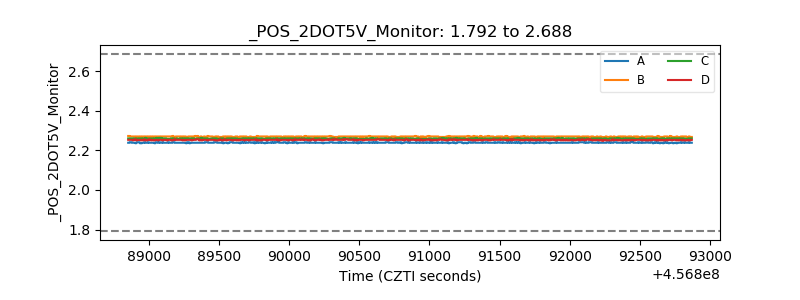

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
