| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_025T01_9000006312_47269cztM0_level2.fits | modeM0/AS1A13_025T01_9000006312_47269cztM0_level2_quad_clean.evt |
| Size (bytes) | 693,406,080 | 99,302,400 |
| Size | 661.3 MB | 94.7 MB |
| Events in quadrant A | 8,177,414 | 649,545 |
| Events in quadrant B | 3,496,553 | 742,986 |
| Events in quadrant C | 3,421,659 | 690,021 |
| Events in quadrant D | 10,068,451 | 469,401 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28891 | 35 |
| B | 0 | 14842 | 5 |
| C | 0 | 14734 | 3 |
| D | 0 | 34477 | 46 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6506 | 884 | 13.587458% |
| B | 6512 | 54 | 0.829238% |
| C | 6513 | 144 | 2.210963% |
| D | 6505 | 2076 | 31.913912% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7573 | 6513 | 365 | 365 | 4.82% | 5.60% |  |
| B | 7574 | 6515 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7574 | 6515 | 93 | 93 | 1.23% | 1.43% |  |
| D | 7573 | 6514 | 1993 | 1993 | 26.32% | 30.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3869945 | 25539.68 | 727 | 711 | 151.5 |
| A | 9 | 191 | 1369800 | 9036.96 | 727 | 711 | 151.5 |
| A | 15 | 235 | 84941 | 555.98 | 727 | 711 | 151.5 |
| B | 14 | 167 | 125028 | 828.65 | 754 | 731 | 150.0 |
| B | 0 | 200 | 111481 | 738.33 | 754 | 731 | 150.0 |
| B | 0 | 183 | 73919 | 487.92 | 754 | 731 | 150.0 |
| C | 14 | 254 | 297380 | 1712.22 | 733 | 735 | 173.3 |
| C | 10 | 9 | 185049 | 1063.85 | 733 | 735 | 173.3 |
| C | 8 | 222 | 17262 | 95.39 | 733 | 735 | 173.3 |
| D | 6 | 112 | 6559068 | 39189.46 | 654 | 632 | 167.4 |
| D | 12 | 233 | 394466 | 2353.32 | 654 | 632 | 167.4 |
| D | 12 | 1 | 218717 | 1303.15 | 654 | 632 | 167.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

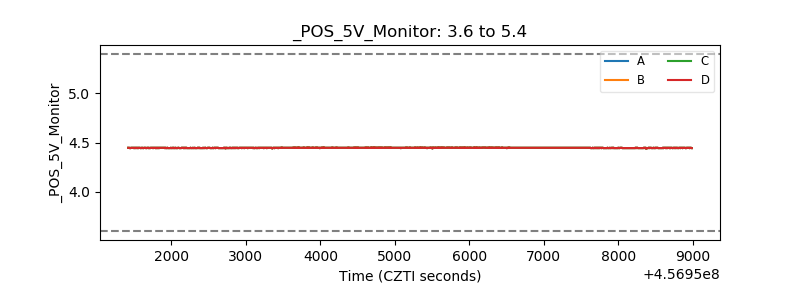

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
