| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_025T01_9000006312_47272cztM0_level2.fits | modeM0/AS1A13_025T01_9000006312_47272cztM0_level2_quad_clean.evt |
| Size (bytes) | 512,213,760 | 106,439,040 |
| Size | 488.5 MB | 101.5 MB |
| Events in quadrant A | 7,436,536 | 671,551 |
| Events in quadrant B | 3,372,164 | 767,025 |
| Events in quadrant C | 3,325,078 | 715,738 |
| Events in quadrant D | 4,339,756 | 630,268 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 2 |
| B | 0 | 15 | 2 |
| C | 0 | 15 | 2 |
| D | 0 | 15 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27150 | 765 |
| B | 0 | 14386 | 169 |
| C | 0 | 14390 | 150 |
| D | 0 | 17660 | 186 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 2 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6222 | 619 | 9.948570% |
| B | 6296 | 88 | 1.397713% |
| C | 6297 | 160 | 2.540892% |
| D | 6288 | 365 | 5.804707% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7596 | 6352 | 286 | 286 | 3.77% | 4.50% |  |
| B | 7596 | 6358 | 15 | 15 | 0.20% | 0.24% |  |
| C | 7596 | 6359 | 110 | 110 | 1.45% | 1.73% |  |
| D | 7596 | 6358 | 277 | 277 | 3.65% | 4.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3460917 | 23645.57 | 705 | 691 | 146.3 |
| A | 9 | 191 | 1195475 | 8164.59 | 705 | 691 | 146.3 |
| A | 13 | 6 | 17988 | 118.2 | 705 | 691 | 146.3 |
| B | 0 | 200 | 146556 | 998.46 | 746 | 725 | 146.1 |
| B | 0 | 190 | 102003 | 693.42 | 746 | 725 | 146.1 |
| B | 5 | 32 | 66982 | 453.64 | 746 | 725 | 146.1 |
| C | 14 | 254 | 444731 | 2588.01 | 728 | 732 | 171.6 |
| C | 3 | 233 | 18240 | 102.05 | 728 | 732 | 171.6 |
| C | 12 | 250 | 10106 | 54.64 | 728 | 732 | 171.6 |
| D | 6 | 112 | 856794 | 4785.17 | 705 | 684 | 178.9 |
| D | 12 | 233 | 408259 | 2278.11 | 705 | 684 | 178.9 |
| D | 2 | 249 | 105881 | 587.99 | 705 | 684 | 178.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

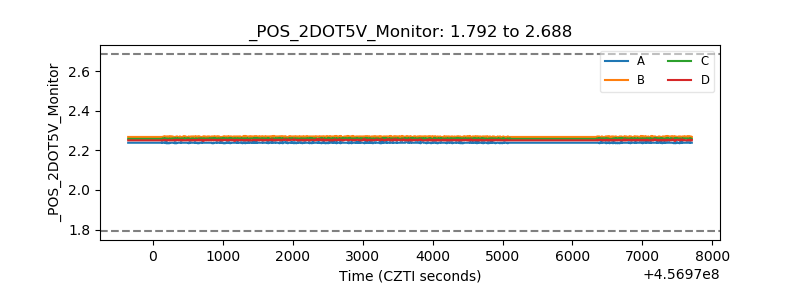

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
