| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_025T01_9000006312_47276cztM0_level2.fits | modeM0/AS1A13_025T01_9000006312_47276cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,905,370,560 | 340,223,040 |
| Size | 1.8 GB | 324.5 MB |
| Events in quadrant A | 24,409,032 | 2,238,743 |
| Events in quadrant B | 11,572,833 | 2,471,151 |
| Events in quadrant C | 10,023,507 | 2,345,643 |
| Events in quadrant D | 22,829,992 | 1,730,513 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 2 |
| B | 0 | 35 | 2 |
| C | 0 | 35 | 4 |
| D | 0 | 35 | 5 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102282 | 14878 |
| B | 0 | 56445 | 7122 |
| C | 0 | 53303 | 7181 |
| D | 0 | 95212 | 12040 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 507 | 57 |
| B | 0 | 507 | 63 |
| C | 0 | 509 | 63 |
| D | 0 | 508 | 52 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 21696 | 1486 | 6.849189% |
| B | 22169 | 464 | 2.093013% |
| C | 22182 | 103 | 0.464340% |
| D | 21874 | 3081 | 14.085215% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 29999 | 22201 | 337 | 337 | 1.12% | 1.52% |  |
| B | 30092 | 22691 | 102 | 102 | 0.34% | 0.45% |  |
| C | 30105 | 22714 | 14 | 14 | 0.05% | 0.06% |  |
| D | 30094 | 22432 | 2851 | 2851 | 9.47% | 12.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 11478669 | 22662.99 | 2445 | 2392 | 506.4 |
| A | 9 | 191 | 3427553 | 6763.9 | 2445 | 2392 | 506.4 |
| A | 13 | 254 | 32208 | 58.88 | 2445 | 2392 | 506.4 |
| B | 0 | 200 | 747777 | 1490.75 | 2543 | 2459 | 500.0 |
| B | 5 | 32 | 289448 | 574.02 | 2543 | 2459 | 500.0 |
| B | 0 | 190 | 96165 | 187.43 | 2543 | 2459 | 500.0 |
| C | 3 | 233 | 134865 | 226.37 | 2486 | 2498 | 584.7 |
| C | 14 | 254 | 109651 | 183.25 | 2486 | 2498 | 584.7 |
| C | 1 | 3 | 42366 | 68.18 | 2486 | 2498 | 584.7 |
| D | 6 | 112 | 11579097 | 19553.01 | 2356 | 2280 | 592.1 |
| D | 1 | 47 | 682162 | 1148.31 | 2356 | 2280 | 592.1 |
| D | 8 | 176 | 436352 | 733.14 | 2356 | 2280 | 592.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

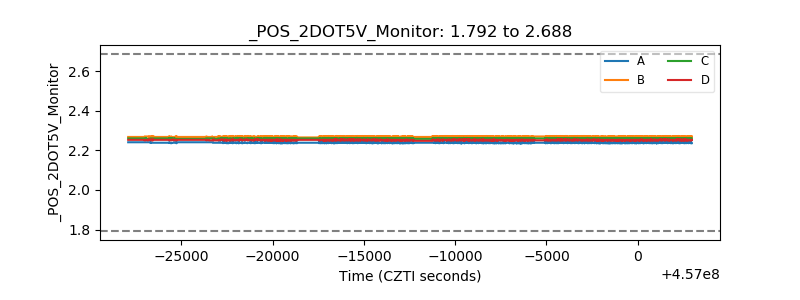

| +2.5 Volts monitor |  |

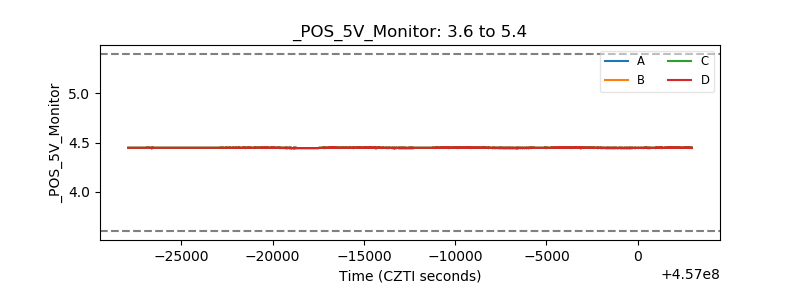

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
