| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_025T01_9000006312_47281cztM0_level2.fits | modeM0/AS1A13_025T01_9000006312_47281cztM0_level2_quad_clean.evt |
| Size (bytes) | 656,752,320 | 110,845,440 |
| Size | 626.3 MB | 105.7 MB |
| Events in quadrant A | 8,819,088 | 726,336 |
| Events in quadrant B | 3,894,569 | 775,359 |
| Events in quadrant C | 3,252,247 | 728,690 |
| Events in quadrant D | 7,796,957 | 631,650 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31089 | 6 |
| B | 0 | 16351 | 2 |
| C | 0 | 14651 | 2 |
| D | 0 | 28090 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7088 | 689 | 9.720655% |
| B | 7088 | 171 | 2.412528% |
| C | 7089 | 99 | 1.396530% |
| D | 7089 | 808 | 11.397940% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8453 | 7090 | 211 | 211 | 2.50% | 2.98% |  |
| B | 8453 | 7090 | 19 | 19 | 0.22% | 0.27% |  |
| C | 8454 | 7091 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8454 | 7091 | 695 | 695 | 8.22% | 9.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4267328 | 25301.27 | 806 | 788 | 168.6 |
| A | 9 | 191 | 1090441 | 6461.82 | 806 | 788 | 168.6 |
| A | 15 | 235 | 293085 | 1733.37 | 806 | 788 | 168.6 |
| B | 0 | 200 | 204068 | 1253.68 | 821 | 796 | 162.1 |
| B | 0 | 198 | 106685 | 653.07 | 821 | 796 | 162.1 |
| B | 5 | 255 | 66369 | 404.42 | 821 | 796 | 162.1 |
| C | 3 | 233 | 48092 | 245.32 | 807 | 809 | 192.7 |
| C | 3 | 110 | 42516 | 216.39 | 807 | 809 | 192.7 |
| C | 10 | 9 | 6042 | 27.15 | 807 | 809 | 192.7 |
| D | 6 | 112 | 3250429 | 16230.96 | 787 | 762 | 200.2 |
| D | 12 | 233 | 492330 | 2455.21 | 787 | 762 | 200.2 |
| D | 12 | 2 | 438624 | 2186.97 | 787 | 762 | 200.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

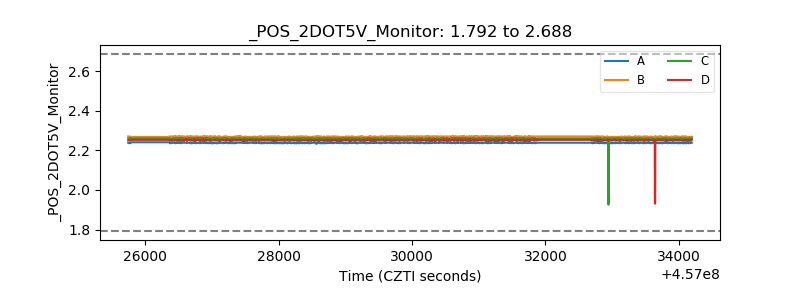

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
