| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_025T01_9000006312_47282cztM0_level2.fits | modeM0/AS1A13_025T01_9000006312_47282cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,736,037,440 | 410,777,280 |
| Size | 2.5 GB | 391.7 MB |
| Events in quadrant A | 31,180,597 | 2,823,441 |
| Events in quadrant B | 15,347,735 | 2,958,789 |
| Events in quadrant C | 12,399,215 | 2,803,582 |
| Events in quadrant D | 40,253,762 | 1,974,587 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 111964 | 3 |
| B | 0 | 63439 | 3 |
| C | 0 | 56571 | 3 |
| D | 0 | 138452 | 9 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 550 | 0 |
| B | 0 | 550 | 0 |
| C | 0 | 550 | 0 |
| D | 0 | 550 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 27267 | 1634 | 5.992592% |
| B | 27267 | 792 | 2.904610% |
| C | 27268 | 299 | 1.096523% |
| D | 27267 | 8114 | 29.757582% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 38001 | 27271 | 365 | 365 | 0.96% | 1.34% |  |
| B | 38002 | 27271 | 189 | 189 | 0.50% | 0.69% |  |
| C | 38002 | 27272 | 32 | 32 | 0.08% | 0.12% |  |
| D | 38002 | 27272 | 7866 | 7866 | 20.70% | 28.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 15178827 | 23761.34 | 3084 | 3014 | 638.7 |
| A | 9 | 191 | 3409885 | 5334.27 | 3084 | 3014 | 638.7 |
| A | 15 | 235 | 497521 | 774.27 | 3084 | 3014 | 638.7 |
| B | 0 | 200 | 1286952 | 2095.81 | 3104 | 3001 | 612.6 |
| B | 5 | 32 | 330641 | 534.81 | 3104 | 3001 | 612.6 |
| B | 0 | 198 | 304235 | 491.71 | 3104 | 3001 | 612.6 |
| C | 14 | 254 | 268548 | 368.32 | 3057 | 3070 | 720.8 |
| C | 12 | 2 | 69918 | 92.74 | 3057 | 3070 | 720.8 |
| C | 3 | 233 | 66165 | 87.54 | 3057 | 3070 | 720.8 |
| D | 6 | 112 | 26276419 | 37570.97 | 2767 | 2679 | 699.3 |
| D | 12 | 233 | 868345 | 1237.89 | 2767 | 2679 | 699.3 |
| D | 12 | 2 | 654467 | 932.05 | 2767 | 2679 | 699.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

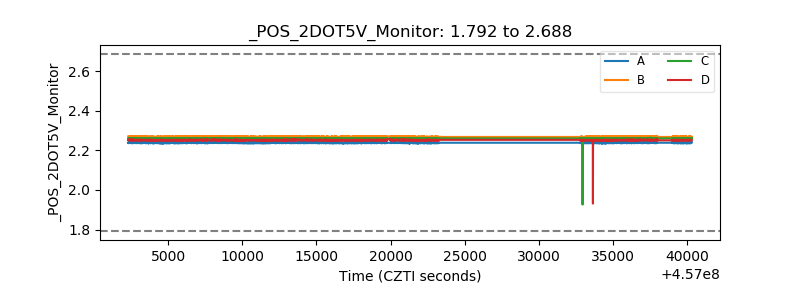

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
